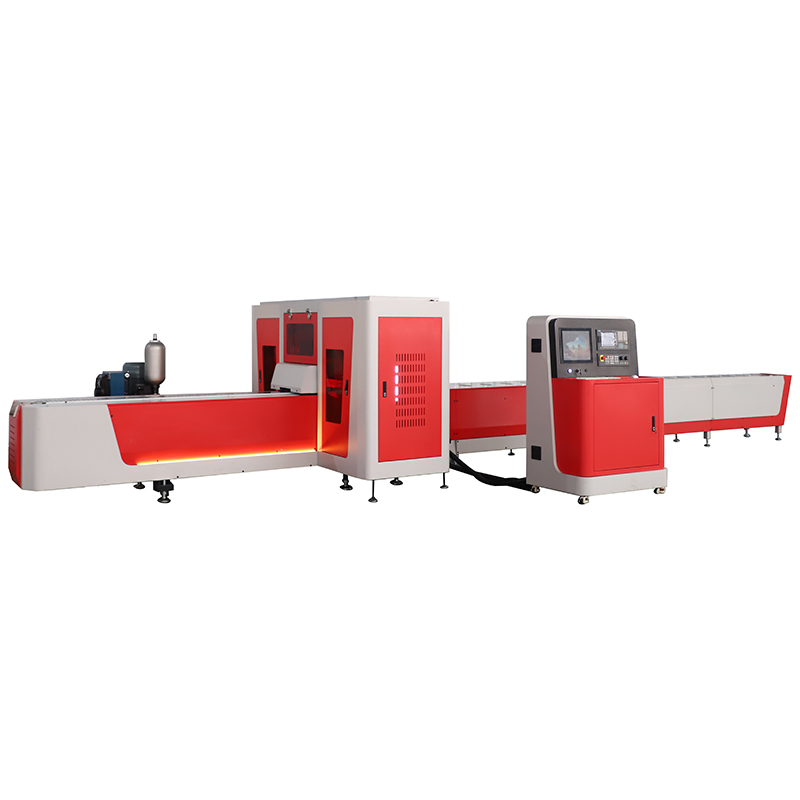

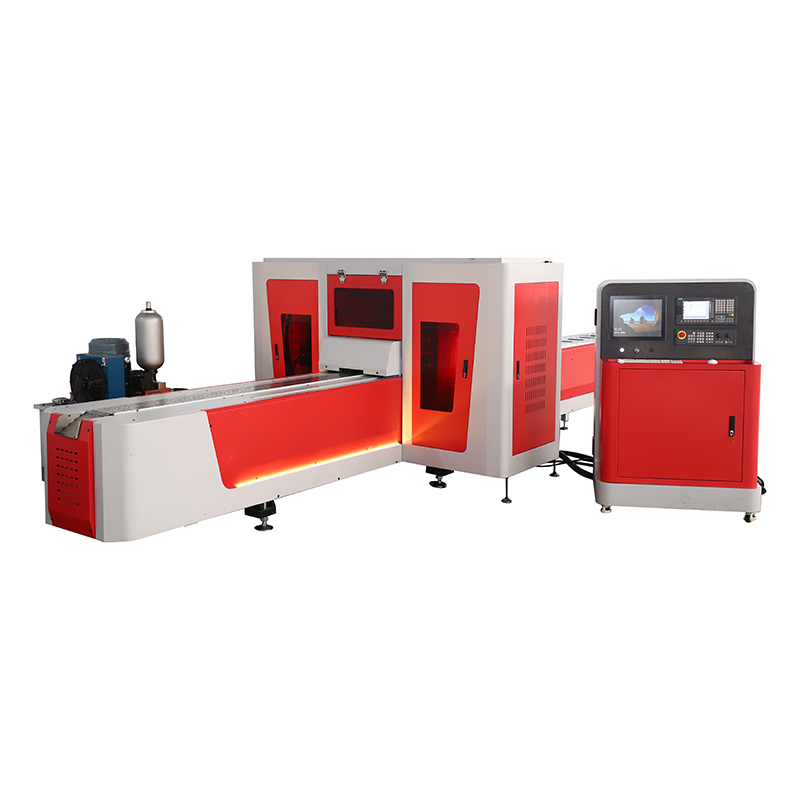

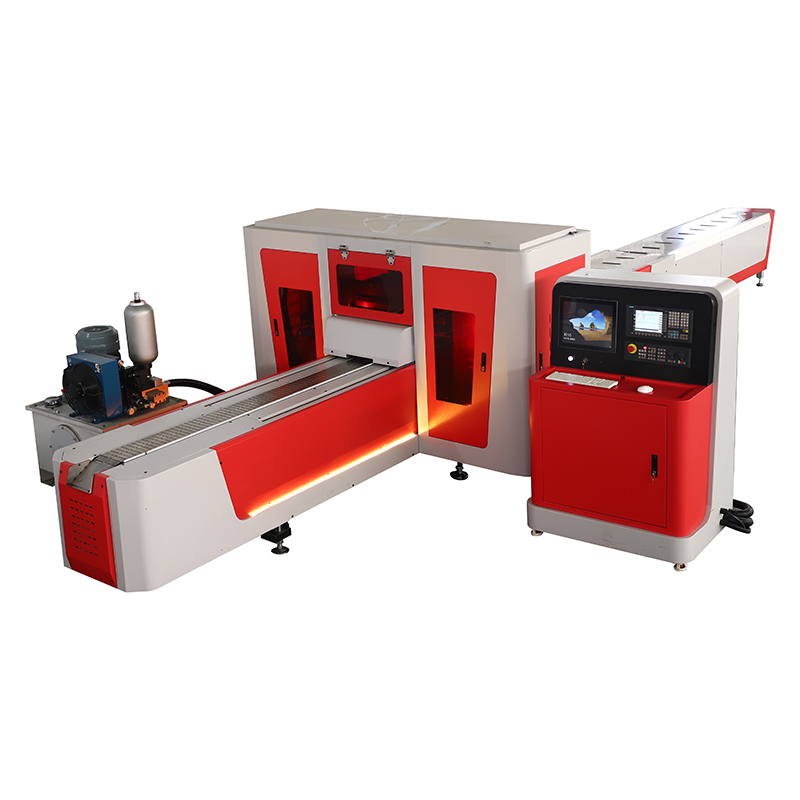

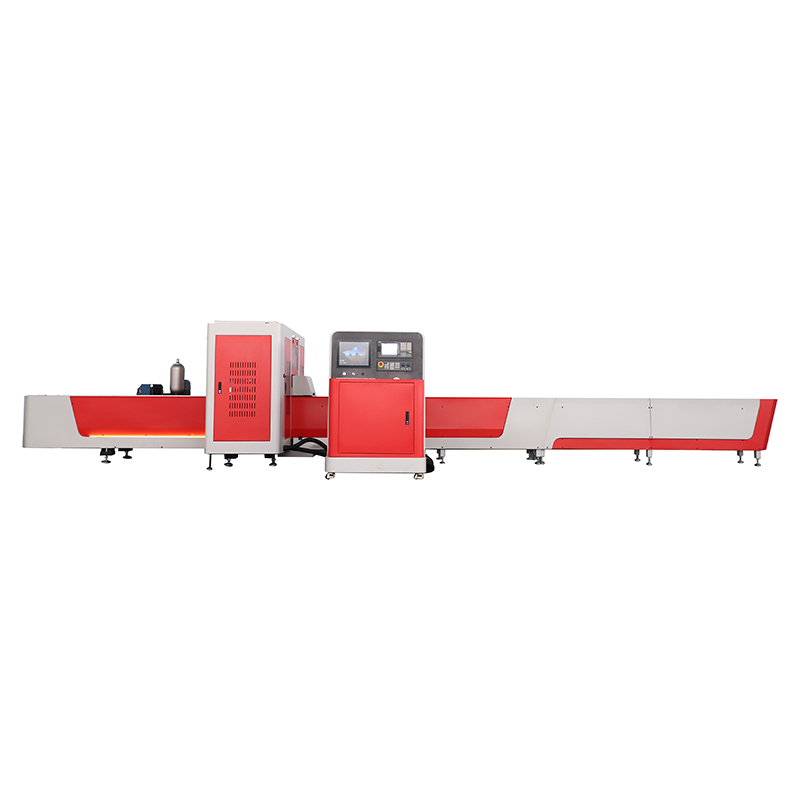

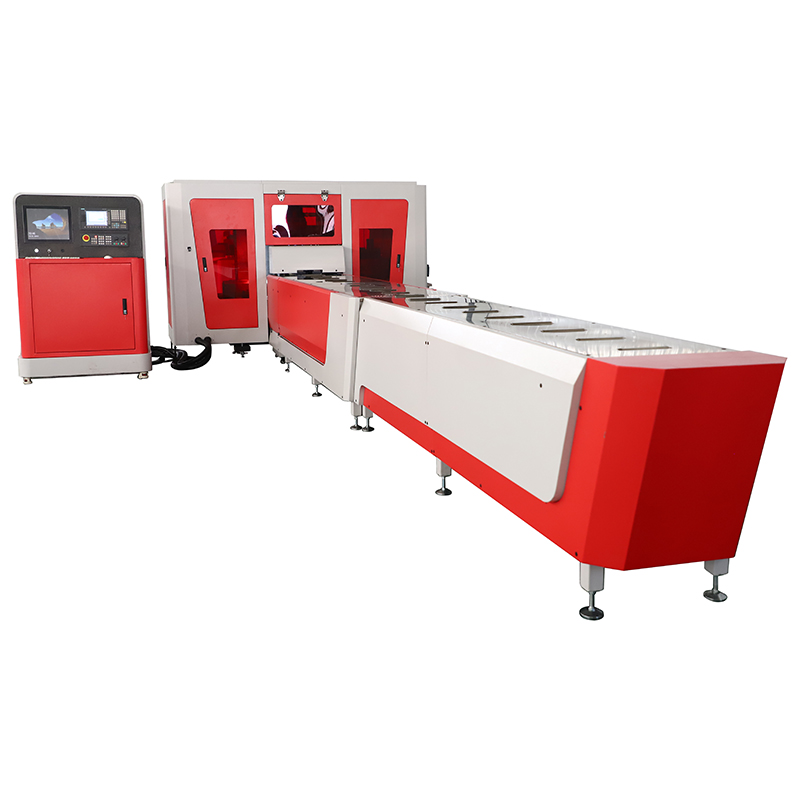

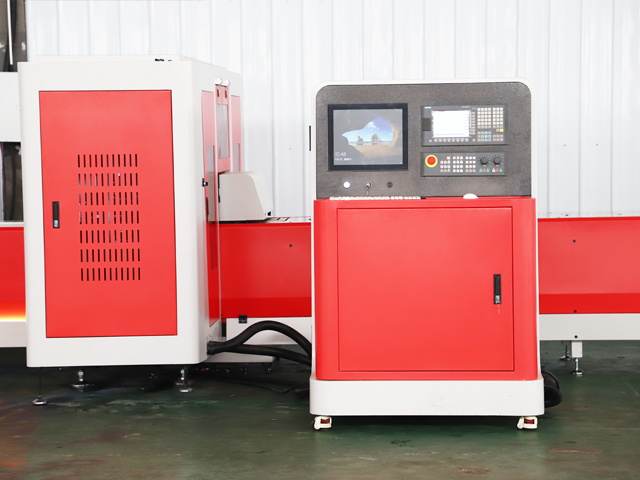

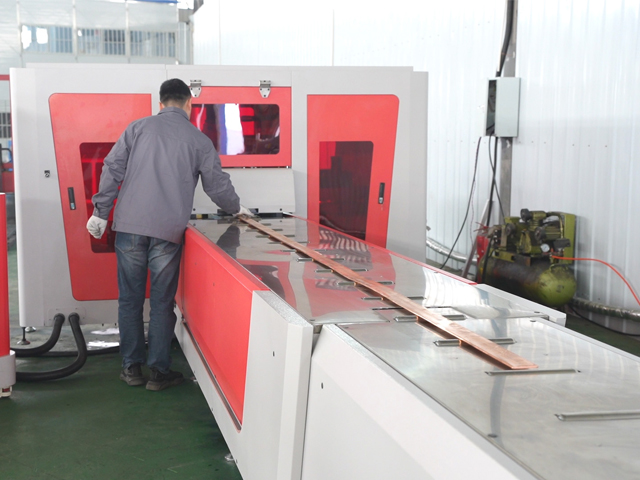

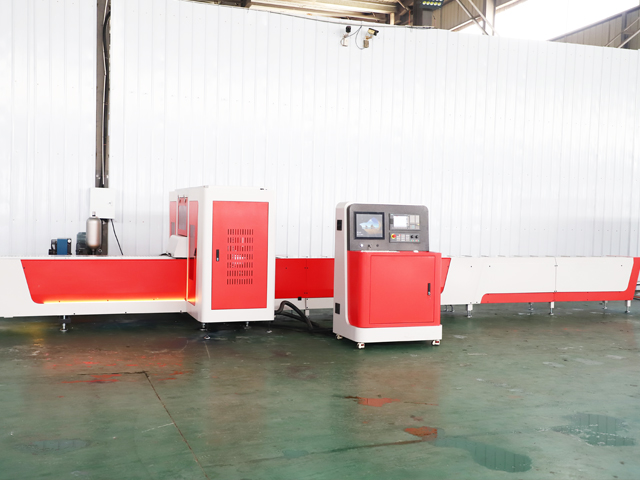

Automatic Busbar Processing Machine
The Automatic Busbar Processing Machine automates feeding, clamping, positioning, punching, cutting and output for copper and aluminum busbars. With a six-axis servo system and automatic tool selection, it streamlines repetitive busbar processing and improves production efficiency.
Product Description
The Automatic Busbar Processing Machine is an automated busbar processing machine designed for continuous processing of copper and aluminum busbars. It integrates three processing functions—punching, cutting, and embossing—into a single machine. The machine adopts a 7-punch, 1-cutting, and 1-embossing die configuration and is equipped with a six-axis servo system. It can automatically perform busbar feeding, clamping, positioning, die changing, and processing, and automatically discharges the busbar after processing, enabling continuous production. The maximum punching speed can reach 180 strokes per minute, making the machine suitable for batch busbar processing and production applications that require high processing efficiency and a high level of automation.
Technical Specifications
The following technical specifications provide a clear overview of the Automatic Busbar Processing Machine, including its maximum processing capacity, punching and cutting capabilities, servo control configuration, and main machine specifications. They provide a useful reference for processing different busbar sizes and selecting the appropriate machine.
Parameter | CJ-MX703 |
Hydraulic Cylinder Pressure | 600 kN |
Tool Magazine | 7 Punching Dies, 1 Shearing Die, 1 Embossing Die |
Cylinder Stroke Frequency | 170-180 strokes/min |
Number of Controlled Axes | 6 Axes |
Hole Pitch Accuracy | ±0.2 mm |
Round Hole Diameter Range | Ø4.3-35 mm |
Maximum Processing Section | 200 × 40 mm² |
Max. X-Axis Positioning Speed | 80 m/min |
Max. X-Axis Travel | 2000 mm |
X-Axis Accuracy | 0.20/500 mm |
Max. Y-Axis Positioning Speed | 60 mm |
Max. Y-Axis Travel | 1000 mm |
Y-Axis Accuracy | 0.20/500 mm |
Max. Z-Axis Travel | 280 mm |
Cylinder Stroke | 45 mm |
Maximum Busbar Size | 6000 × 200 × 16 mm |
Minimum Busbar Size | 15 × 2 mm |
Total Power | 20 kW |
Power Supply | 380 V / 50 Hz |
Overall Dimensions | 10500 × 2500 × 1760 mm |
Product Video

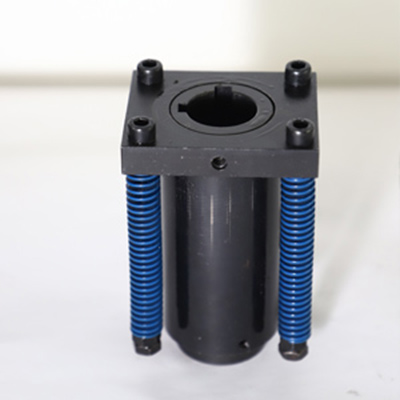

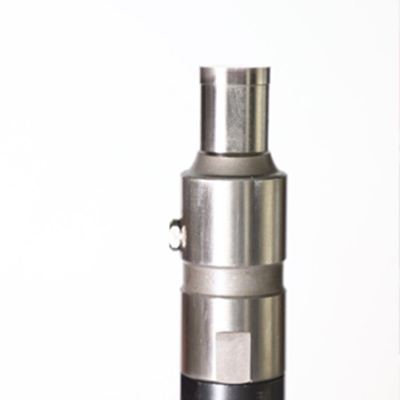

Molds and Accessories
Standard Dies Equipped with the Main Machine | |
Punching Dies | φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |
Bending Dies | Small Flat Bending (R3), Large Flat Bending (R5), Horizontal Bending (R80 or R50), U-shaped Bending |
Shearing Die | 1 set |
Embossing Die | 1 set |
Other Accessories | |
Foot Pedal Switch | 3 pcs |
Lubrication Device | 1 set |
Hex Key Set | 1 set |
Proximity Switch | 1 pc |
Relay | 1 pc |
Grease Gun | 1 pc |
Laser Light | 1 pc |
Work Light | 1 pc |
Punch Pin | 1 pc |

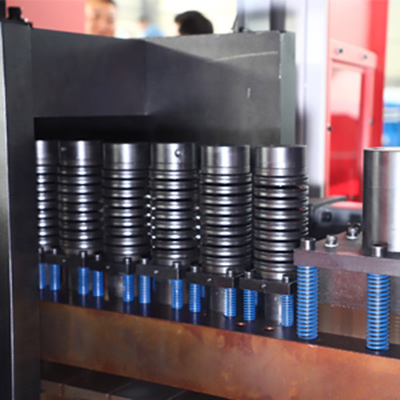

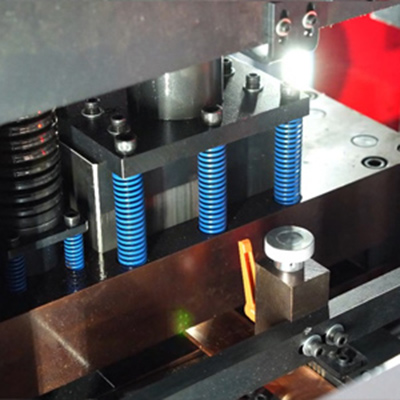

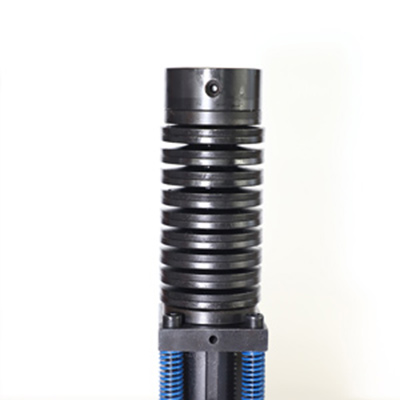

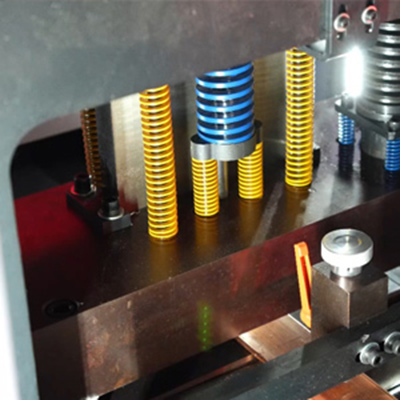

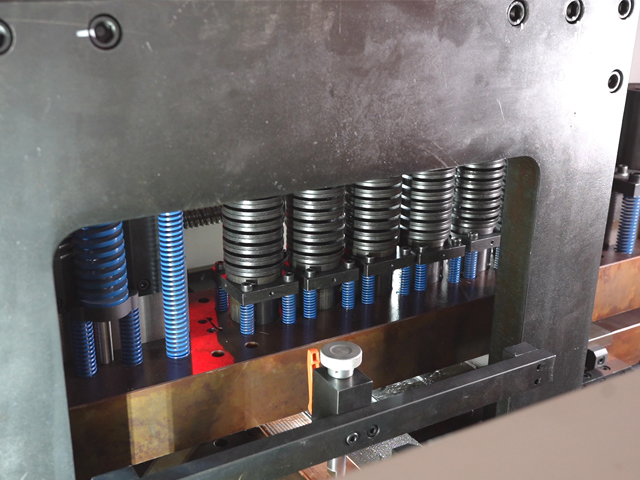

Mold Display

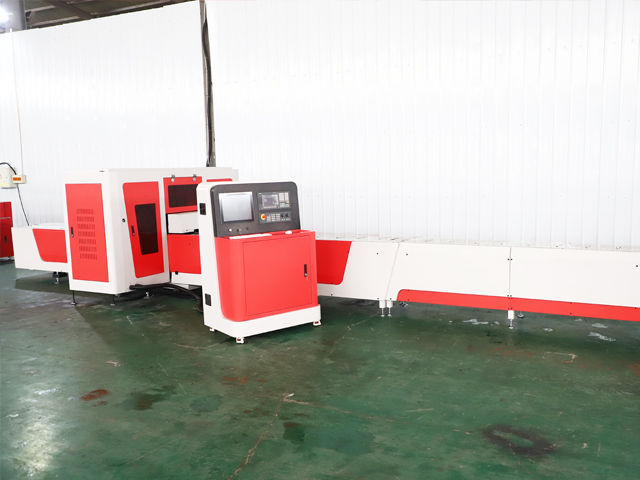

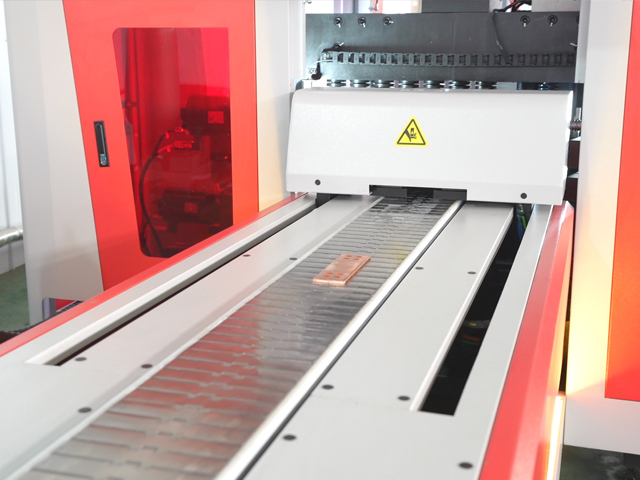

Product Details
