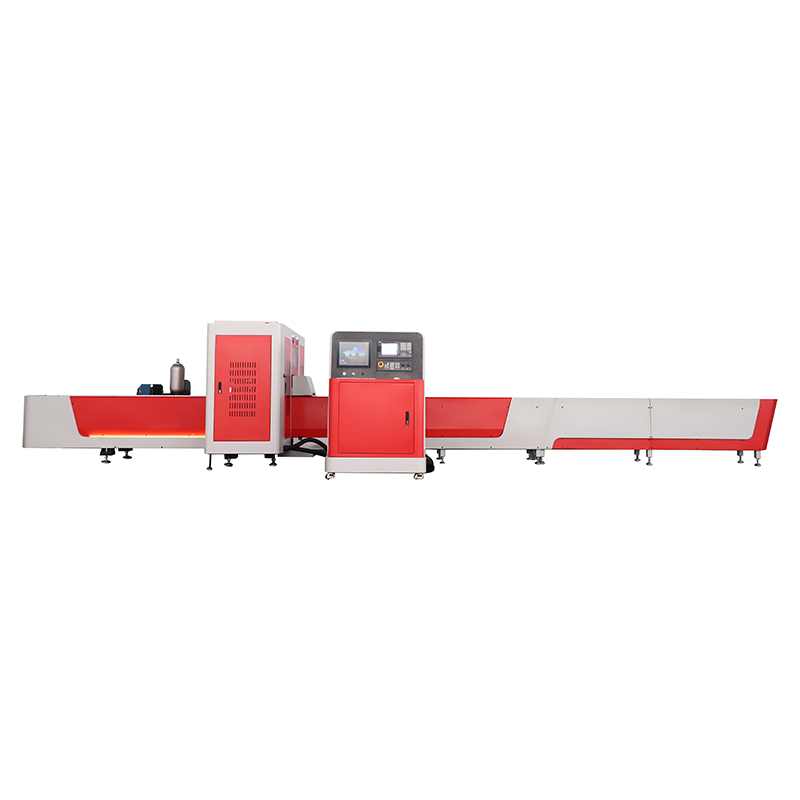

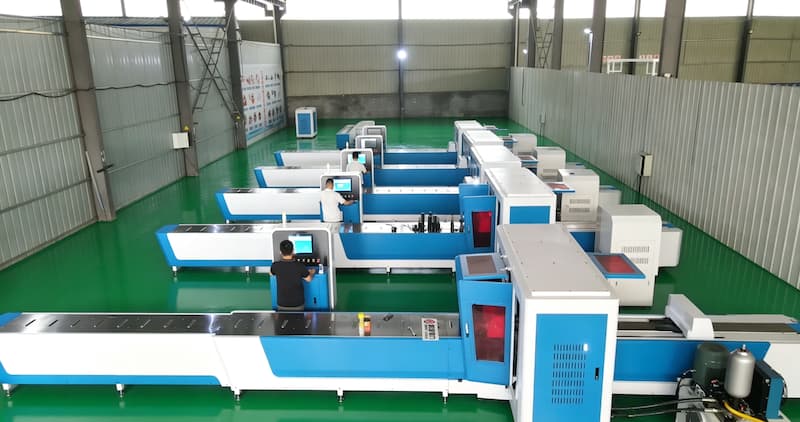

CNC Busbar Punching & Shearing Machine
The CNC Busbar Punching and Shearing Machine is designed for fully automatic busbar processing. It is mainly used for punching, cutting, embossing, chamfering, and other processing operations on copper and aluminum busbars. The machine adopts CNC control and is equipped with a six-axis servo control system to achieve automatic busbar clamping, feeding, positioning, processing, and discharging, enabling fully automated busbar processing. It can improve the efficiency and accuracy of batch busbar processing.
The machine supports CAD drawing import and can perform 3D processing simulation based on the processing data in the drawings, while automatically generating the corresponding processing program. After the operator confirms the processing program, the program can be called for machining, reducing manual programming and parameter settings and improving the operating efficiency for complex busbar processing tasks.
CNC Busbar Punching & Shearing Machine Series
The CNC Busbar Punching and Shearing Machine Series mainly includes two models, CJ-MX703 and CJ-MX802. Both models are equipped with a six-axis servo control system and are mainly used for fully automatic punching and cutting of copper and aluminum busbars.
The CJ-MX703 is configured with 7 punching stations, 1 cutting station, and 1 embossing station, while the CJ-MX802 is configured with 8 punching stations and 1 cutting station. Both models can meet the requirements of batch punching and cutting for different busbar sizes. Customers can select the appropriate machine according to their actual busbar processing requirements.
Specifications of CNC Busbar Punching & Shearing Machine
Different models of CNC busbar punching & shearing machines differ in the number of punching holes, processing functions and equipment configurations. The CJ-MX703 and CJ-MX802 adopt different punching and functional setups. The following parameters help you quickly understand the main configuration and processing capacity of each model.
| Parameter Item | CJ-MX703 | CJ-MX802 |
|---|---|---|
| Cylinder Pressure | 600KN | 600KN |
| Die Magazine | 7 punching dies, 1 cutting die, 1 knurling die | 8 punching dies, 1 cutting die |
| Cylinder Stroke Frequency | 170-180 strokes/min | 170-180 strokes/min |
| Controlled Axes | 6 axes | 6 axes |
| Hole Spacing Control Accuracy | ±0.2mm | ±0.2mm |
| Max. Round Hole Diameter | Ø4.3-35mm | Ø4.3-35mm |
| Max. Pressing Cross-section | 200×40mm² | 200×40mm² |
| X-axis Max. Positioning Speed | 80 m/min | 80 m/min |
| X-axis Max. Effective Travel | 2000 mm | 2000 mm |
| X-axis Accuracy Error | 0.20mm / 500 mm | 0.20mm / 500 mm |
| Y-axis Max. Positioning Speed | 60 m/min | 60 m/min |
| Y-axis Max. Effective Travel | 1000 mm | 1000 mm |
| Y-axis Accuracy Error | 0.20mm / 500 mm | 0.20mm / 500 mm |
| Z-axis Max. Effective Travel | 280 mm | 280 mm |
| Cylinder Stroke | 45 mm | 45 mm |
| Max. Processed Copper Busbar | 6000×200×16mm | 6000×200×16mm |
| Min. Processed Copper Busbar | 15×2mm | 15×2mm |
| Total Power | 20KW | 20KW |
| Voltage | 380V 50HZ | 380V 50HZ |
| Overall Dimension | 10500×2500×1760mm | 10500×2500×1760mm |
What Functions Does the CNC Busbar Punching & Shearing Machine Have?
The CNC Busbar Punching and Shearing Machine is different from the CNC Busbar Machine. It is mainly used for automatic punching and cutting of busbars. The machine adopts CNC control and a six-axis servo system to achieve automatic busbar clamping, feeding, positioning, processing, and discharging. It is suitable for batch punching and cutting of copper and aluminum busbars.
The machine can also be combined with a CNC Busbar Bending Machine to form a busbar punching, cutting, and bending production line. This enables different processing operations, including punching, cutting, and bending, to be connected in sequence, reducing manual material transfer and improving overall production efficiency.

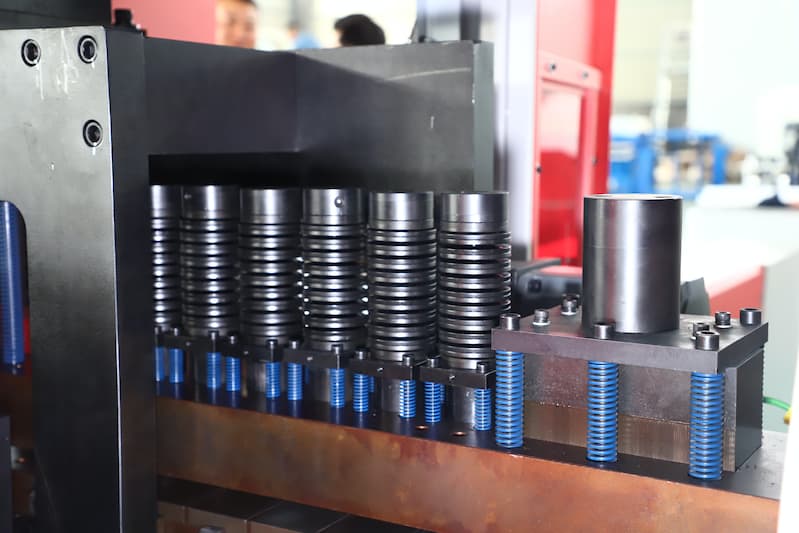

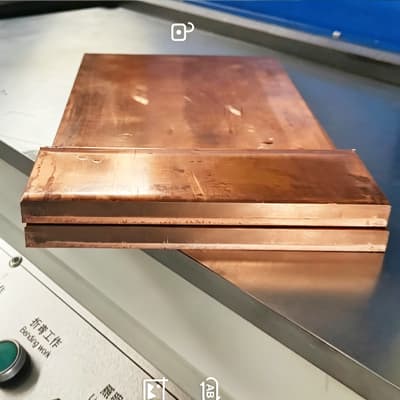

Punching Function

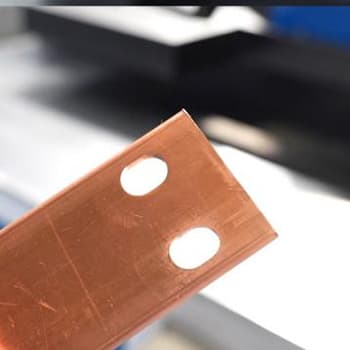

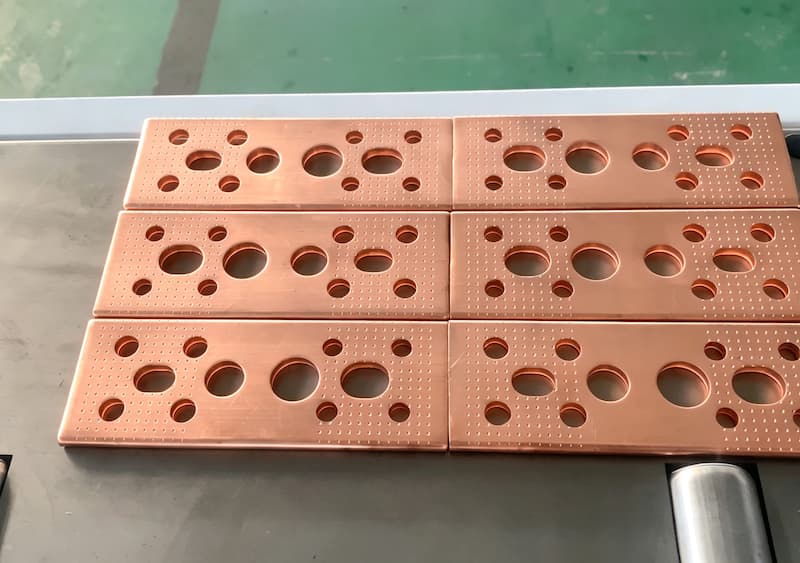

It is used for punching and chamfering of copper and aluminum busbars. By replacing dies of different specifications, common hole types such as round holes and slotted holes of various diameters can be processed, and chamfering can be performed on busbar edges to meet diverse busbar processing requirements.

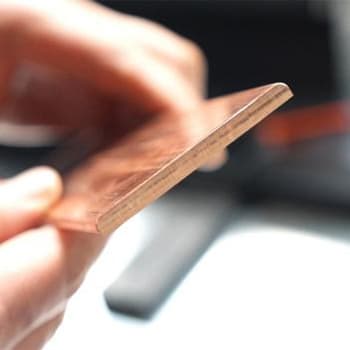

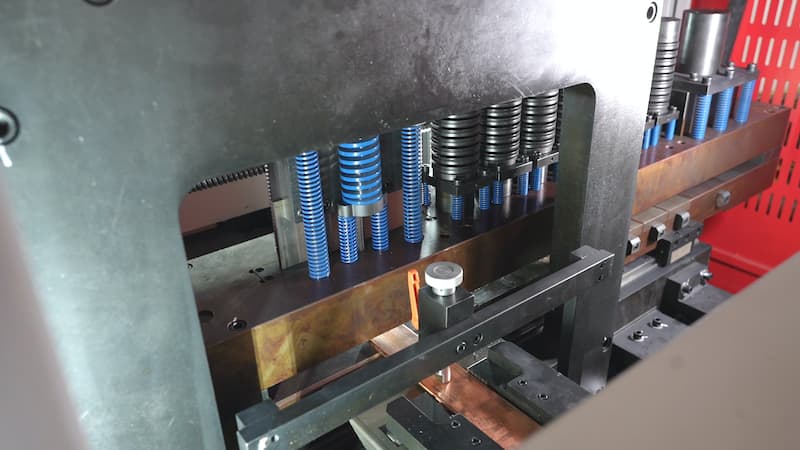

Shearing Function
It is used for fixed-length cutting of copper and aluminum busbars. It can automatically locate the cutting position according to the machining program to achieve fast and continuous busbar cutting.

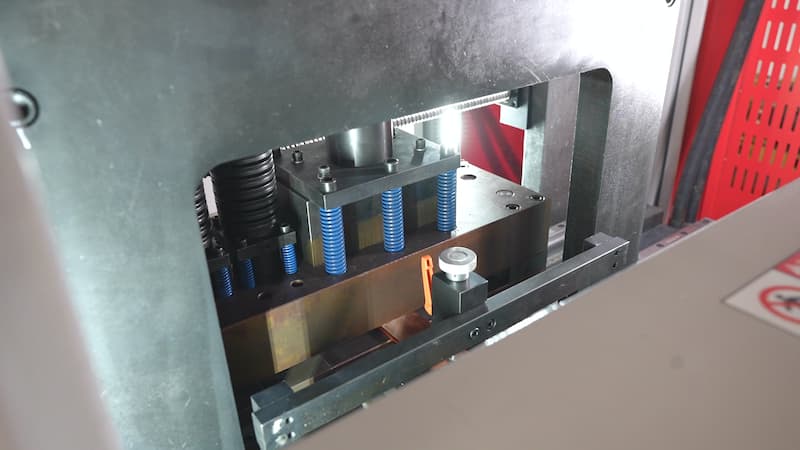

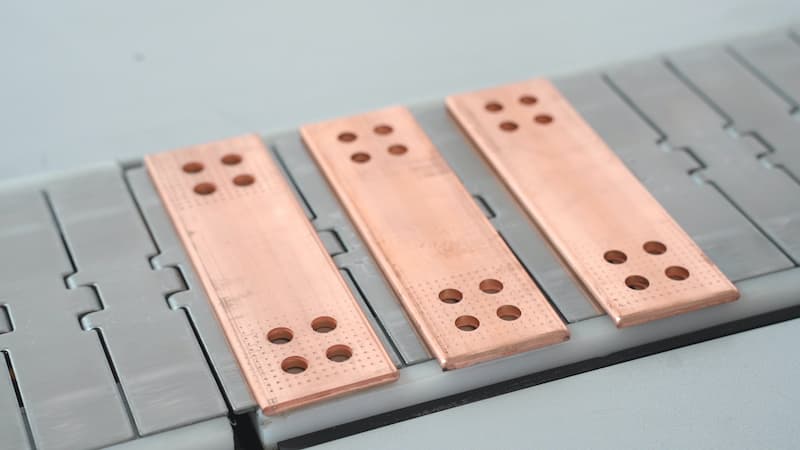

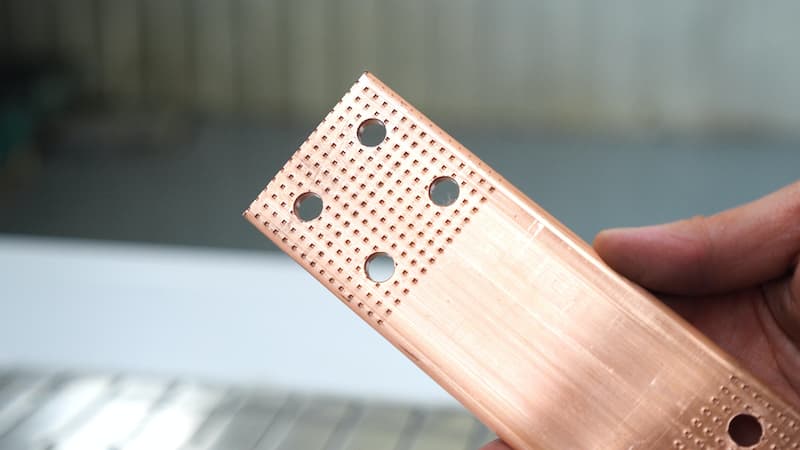

Knurling Function
With dedicated knurling dies installed, it can perform knurling processing on copper and aluminum busbars to meet different busbar process requirements. Only the CJ-MX703 model is equipped with the knurling function.

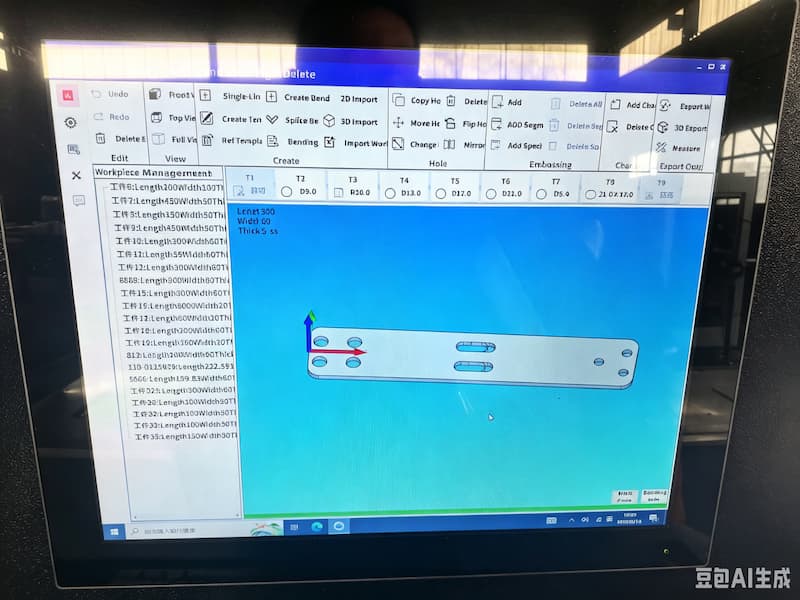

CAD Drawing Import & Automatic Programming
It supports CAD drawing import. The system carries out 3D machining simulation based on drawing data and automatically generates machining programs, reducing manual programming and parameter configuration.
Application Fields of CNC Busbar Punching & Shearing Machine
The CNC busbar punching & shearing machine is mainly used for mass punching and cutting of copper and aluminum busbars. It is suitable for production scenarios requiring high busbar processing efficiency, machining precision and continuous production. The machine can process busbars for switchgears, distribution cabinets, power equipment, new energy electrical products and more. It is especially ideal for mass production with various busbar sizes, large production volumes and complex hole layouts.
Switchgear
In busbar trunking manufacturing, precision machining of slots, holes and bends is critical to ensuring reliable power d…
Distribution Cabinet
In high and low voltage switchgear, every connection point must be precisely processed to prevent arcing, overheating an…
Power Equipment Manufacturing
For transformer windings and connections, busbars require precise forming and hole positioning to match core layouts and…
Transformer Manufacturing
EV charging piles demand busbars that balance compact size with high current-carrying capacity, all while meeting strict…
New Energy Electrical Equipment
In box-type substations, busbars must be prefabricated to fit the limited space and ensure quick, error-free on-site ins…
Bus Duct
Communication cabinets and data center equipment require busbars that support high-current loads while maintaining power…
Why Choose Fenghua CNC
In-House Manufacturing
Fenghua CNC independently completes equipment manufacturing, assembly, and testing, ensuring quality control throughout the entire production process.
Customized Solutions
Based on customers’ processing requirements, equipment configurations, and production methods, we provide suitable machine solutions and customized configurations.
Complete Factory Testing
Every 3-in-1 busbar processing machine undergoes complete functional testing and processing tests before shipment to ensure stable operation and reliable performance.
Technical and After-Sales Support
We provide installation, commissioning, operator training, and technical support for 3-in-1 busbar processing machines, helping customers operate the equipment smoothly and efficiently.
