CNC Busbar Bending Machine
The CNC Busbar Bending Machine is a CNC busbar processing machine specially designed for bending copper and aluminum busbars. It adopts a servo motor drive and CNC control system to achieve precise busbar positioning and bending control according to the preset processing parameters. The machine can perform various busbar bending operations, including L-shaped bends, U-shaped bends, Z-shaped bends, and edgewise bends, meeting the forming requirements of busbars in different sizes.
The machine is equipped with CAD/CAM software, which allows operators to create 3D drawings directly in the software and also supports CAD drawing import. The software can generate bending programs based on the processing data in the drawings, perform bending development calculations, and simulate the machining program. This enables operators to check the bending dimensions, angles, and machining process before actual processing.
Features of CNC Busbar Bending Machine
The CNC Busbar Bending Machine uses a CNC system to control bending parameters and the machining process. Combined with servo motor drive and CAD/CAM software, it enables precise control and digital operation of busbar bending processes. The machine supports various bending methods to meet the processing requirements of busbars in different sizes and shapes.

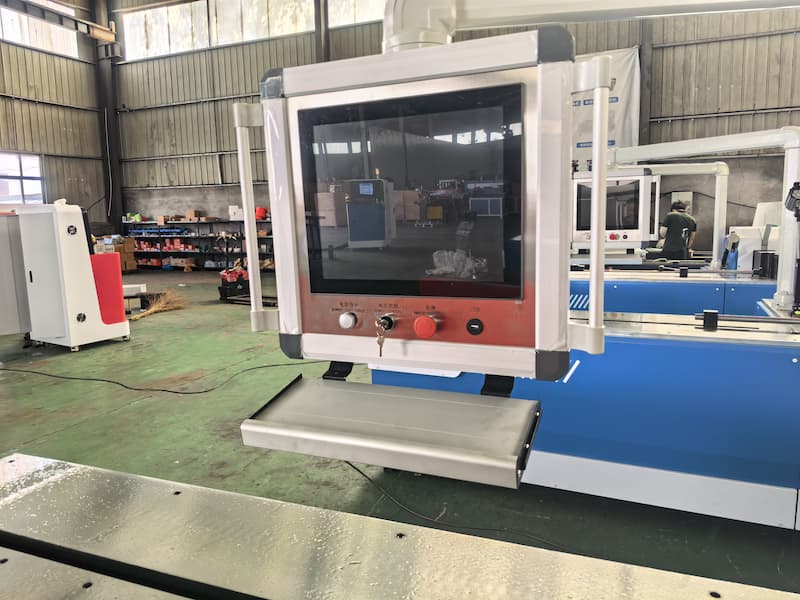

CNC Bending Control
Adopting a CNC control system, it controls the bending position and bending angle of busbars according to preset machining parameters to achieve accurate bending.

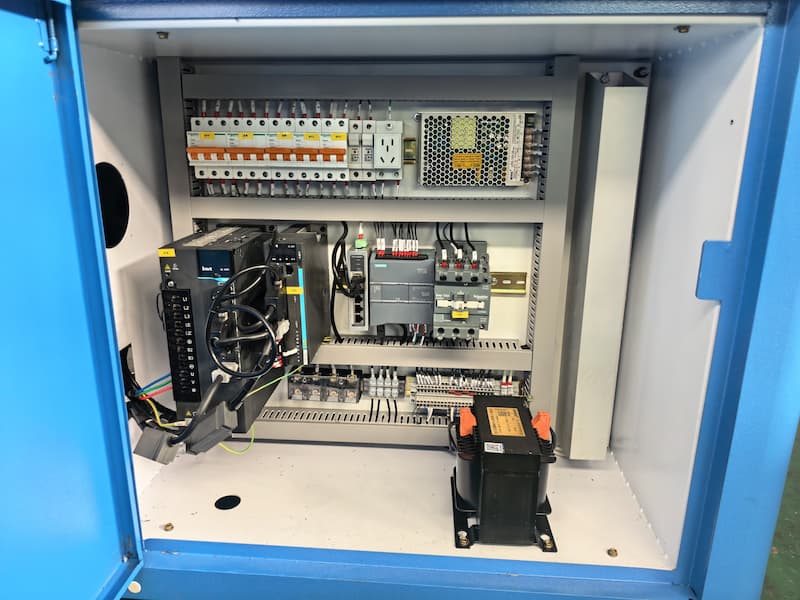

Servo Motor Drive
The bending mechanism is driven by servo motors. The bending motion is controlled based on preset parameters for more stable machine operation, improving the precision and consistency of bending workpieces.

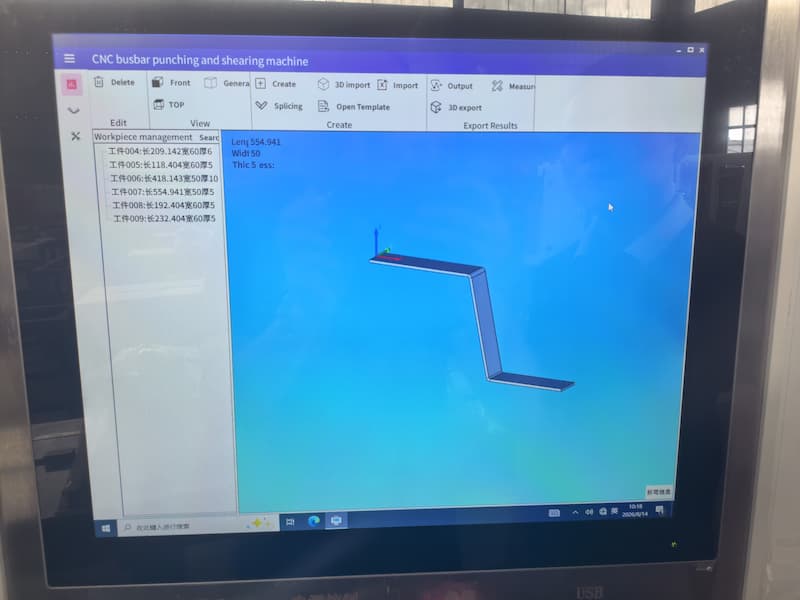

CAD/CAM Drawing & Drawing Import
Equipped with CAD/CAM software, it enables 3D busbar drawing and CAD file import. The software generates bending machining programs from drawing data, and performs bending blank development calculation and program simulation.

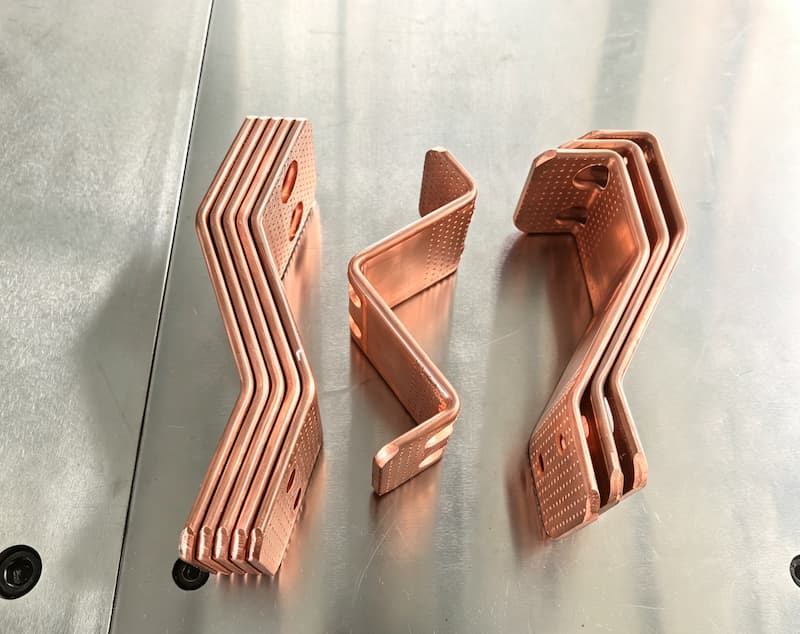

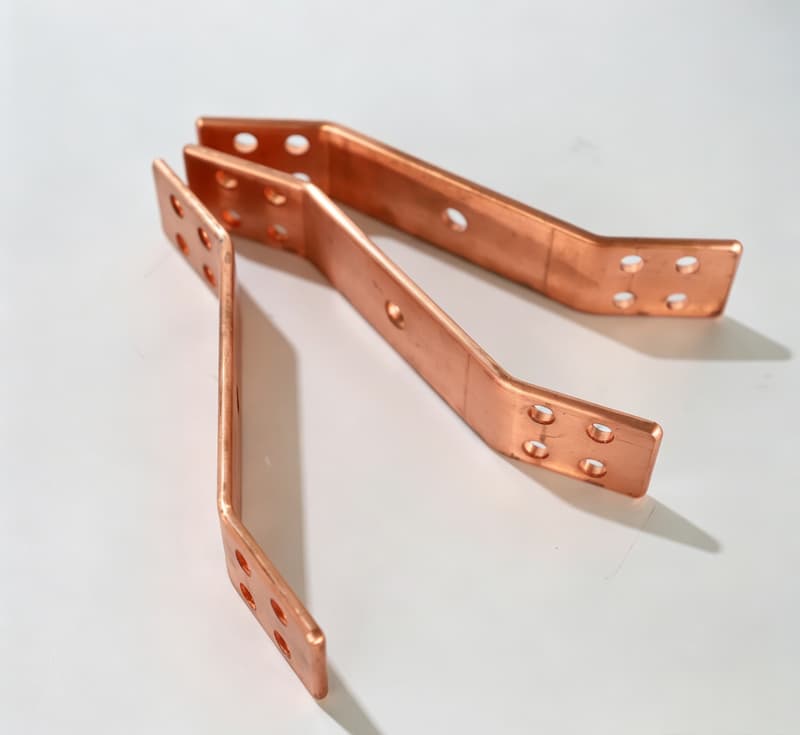

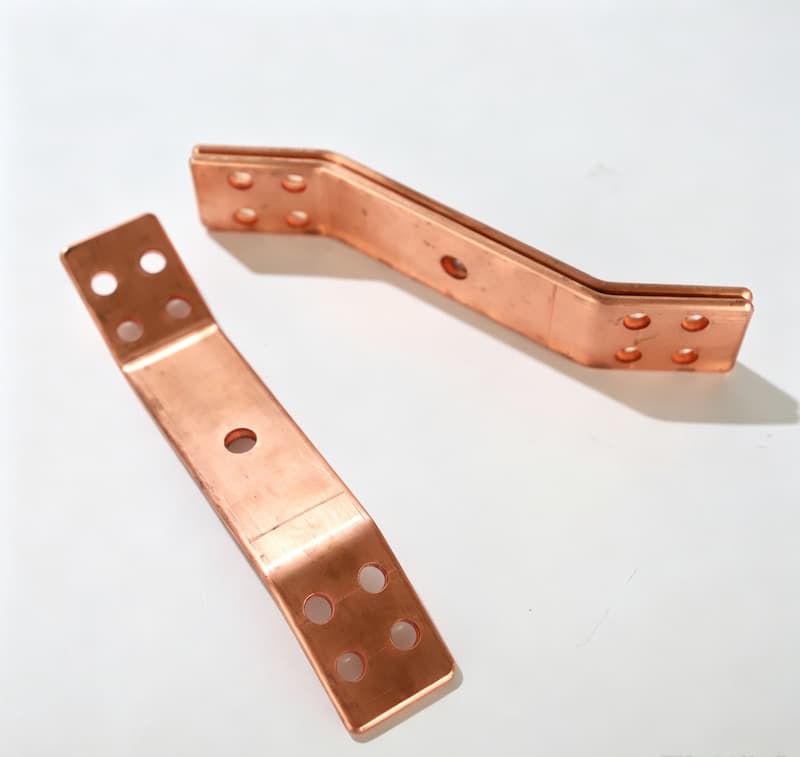

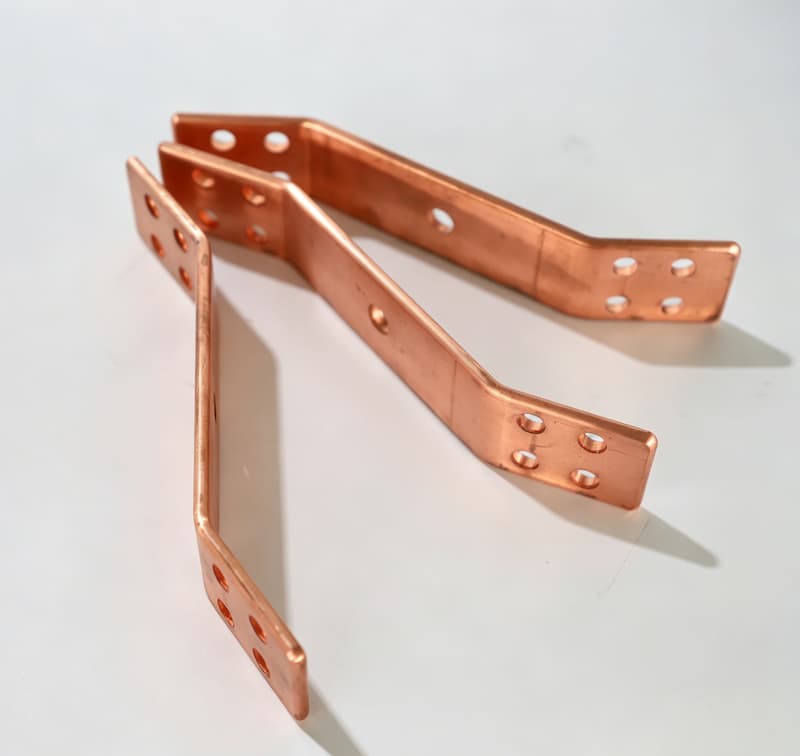

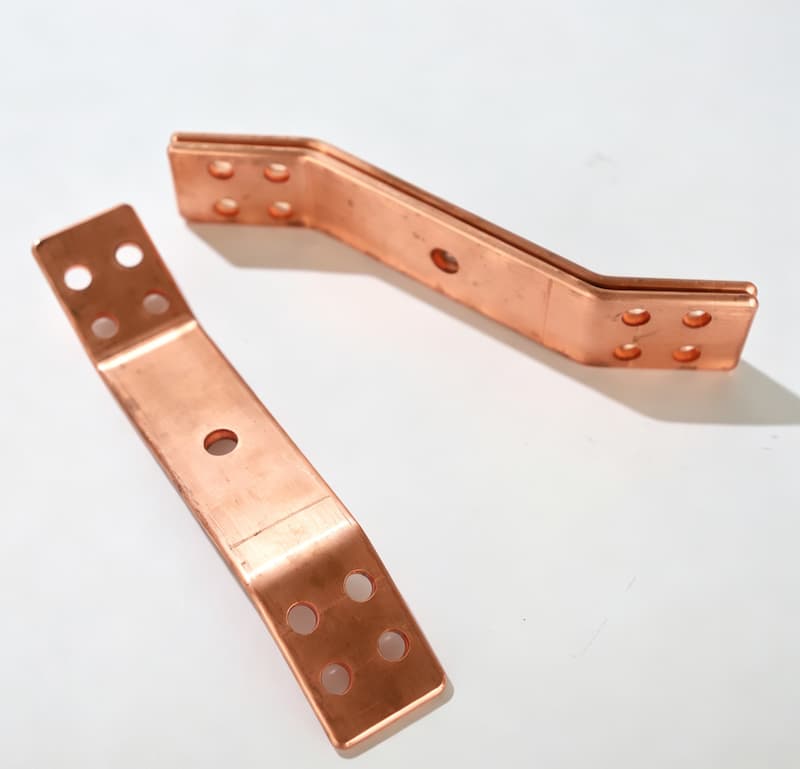

Multiple Bending Processes

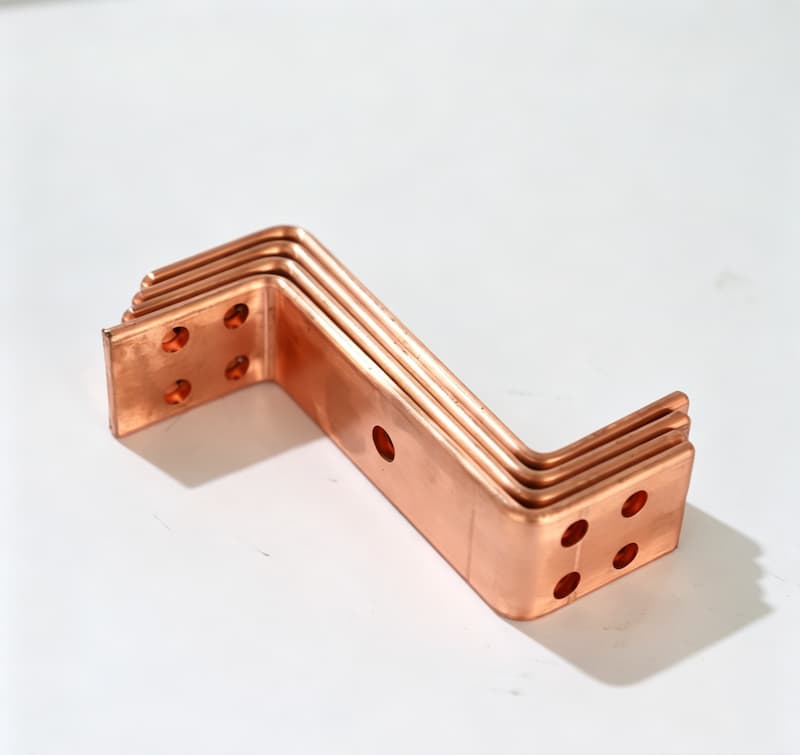

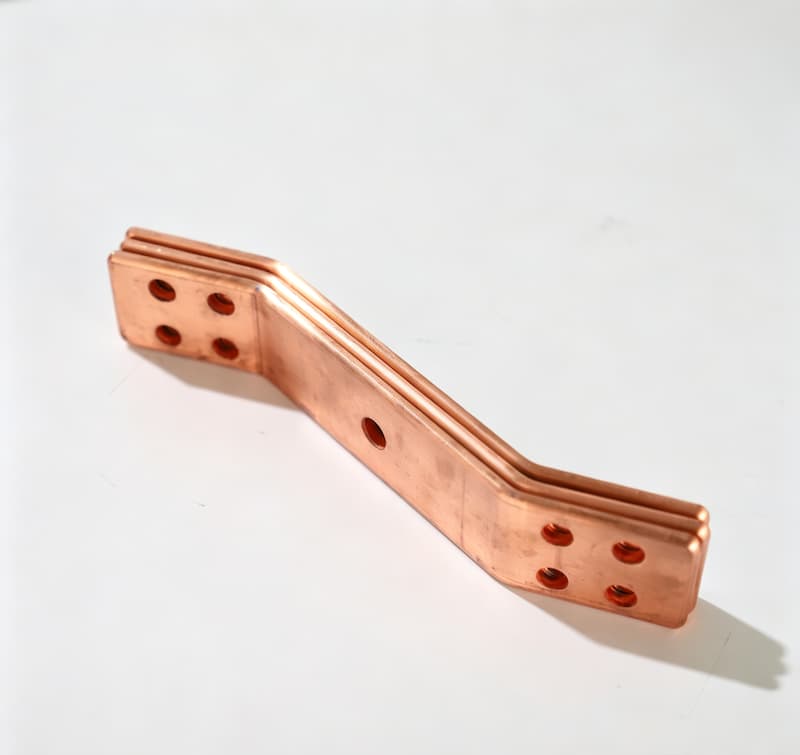

It can perform various busbar bending operations such as L-bend, U-bend, Z-bend and vertical bend. Paired with different bending dies, it fulfills forming requirements for busbars of diverse sizes and profiles.
Equipment Video
Specifications of CNC Busbar Bending Machine
The CNC busbar bending machine is suitable for bending copper and aluminum busbars of various specifications. Its main specifications cover processing capacity, bending angle, drive system, control system and machine dimensions. The parameters below help you further understand the specific configuration and processing capacity of the equipment.
| Item | Value |
|---|---|
| Model | MXZW-200 |
| Nominal Pressure | 400 KN |
| Bending Accuracy | ±0.3° |
| Backstop Accuracy | ±0.3 mm |
| Main Motor Power | 5.5 Kw |
| Spindle Stroke | 210 mm |
| Max. Flat Bending Size | 200mm×16mm |
| Backstop Length | 1500 mm |
| Max. Vertical Bending Size | 120mm×12mm |
| Machine Weight | 3000 KG |
| Overall Dimension | 3450mm×1200mm×1750mm |
| Voltage | 380V 50HZ |
What Functions Does the CNC Busbar Bending Machine Have?
The CNC Busbar Bending Machine is different from the 3-in-1 Busbar Processing Machine and is mainly designed for high-precision CNC bending of busbars, with precise control over bending positions and bending angles. The CNC Busbar Bending Machine can also be used together with a CNC Busbar Punching and Shearing Machine to form a busbar punching, cutting, and bending production line. After punching and cutting are completed, the busbar can be directly transferred to the bending process, enabling continuous busbar processing.

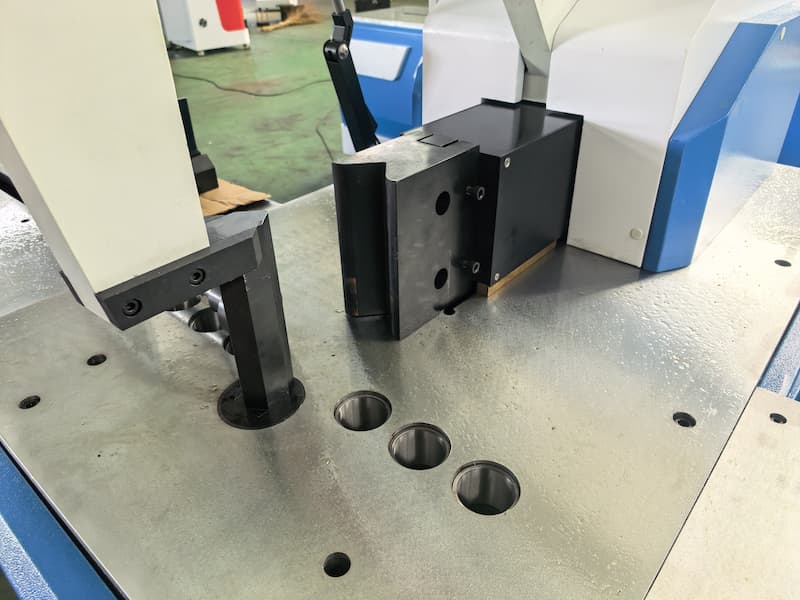

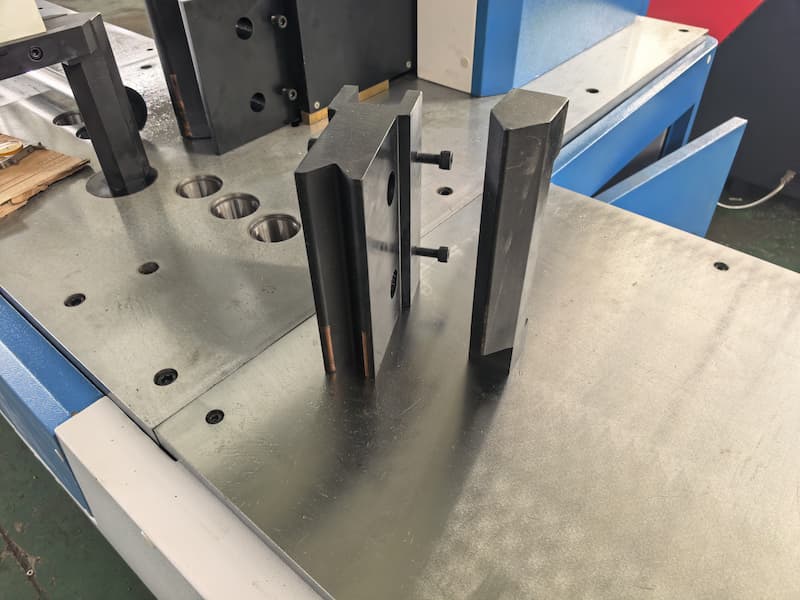

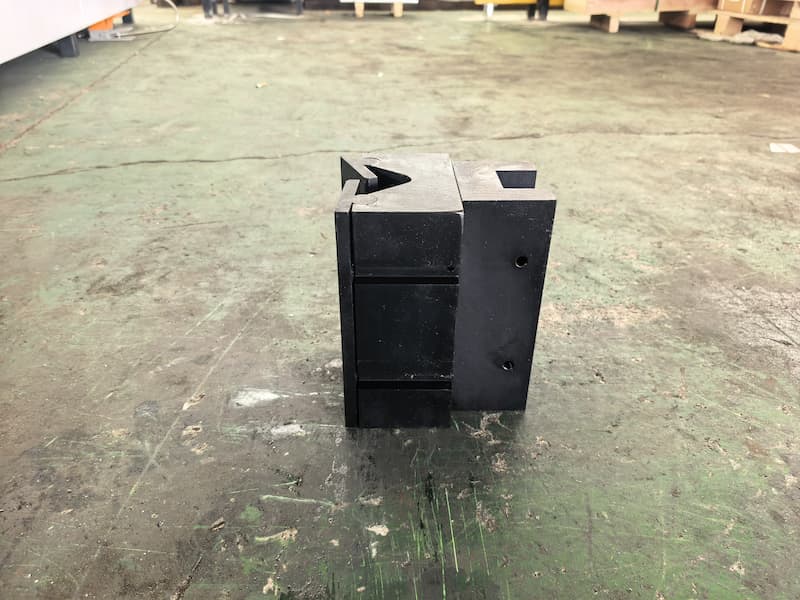

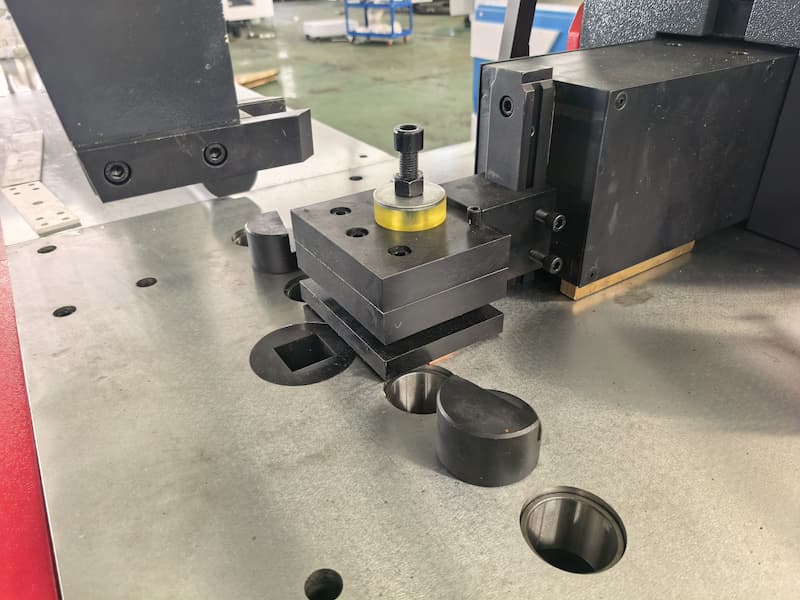

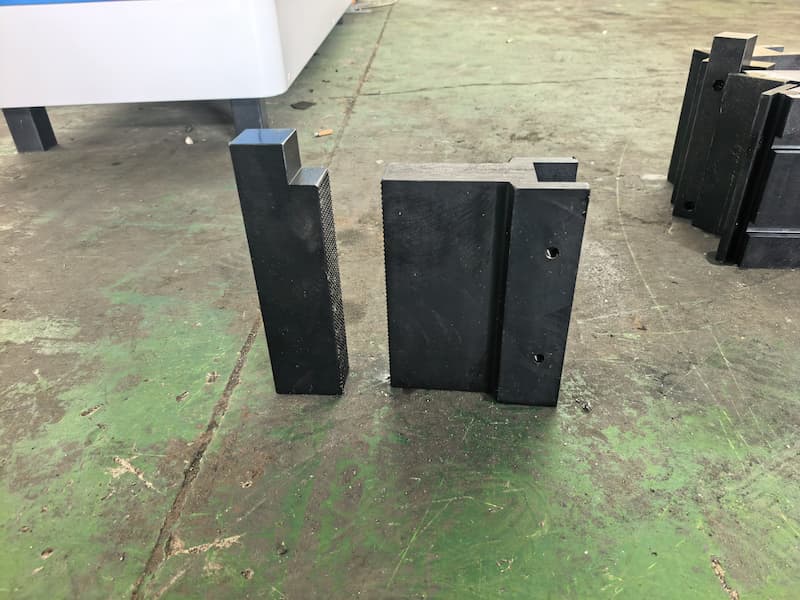

The Busbar Bending Machine is equipped with three sets of bending dies, which can meet the bending requirements of commonly used busbars, including multi-angle edgewise and flatwise bending. For special busbar processing requirements, customized dies can also be provided according to the actual processing needs, including twist-bending dies, U-shaped bending dies, embossing dies, and more.
| Die Model | Quantity |
|---|---|
| R3 Flat Bending Die | 1 set |
| R5 Flat Bending Die | 1 set |
| R60 Vertical Bending Die | 1 set |
| Foot Switch | 1 set |
| English Manual | 1 set |
| English Factory Test Report | 1 set |
| Standard Tools | 1 set |
If you have special busbar bending requirements, you may send processing drawings or specific specifications to our engineers. We will provide corresponding die solutions based on your actual machining needs.
