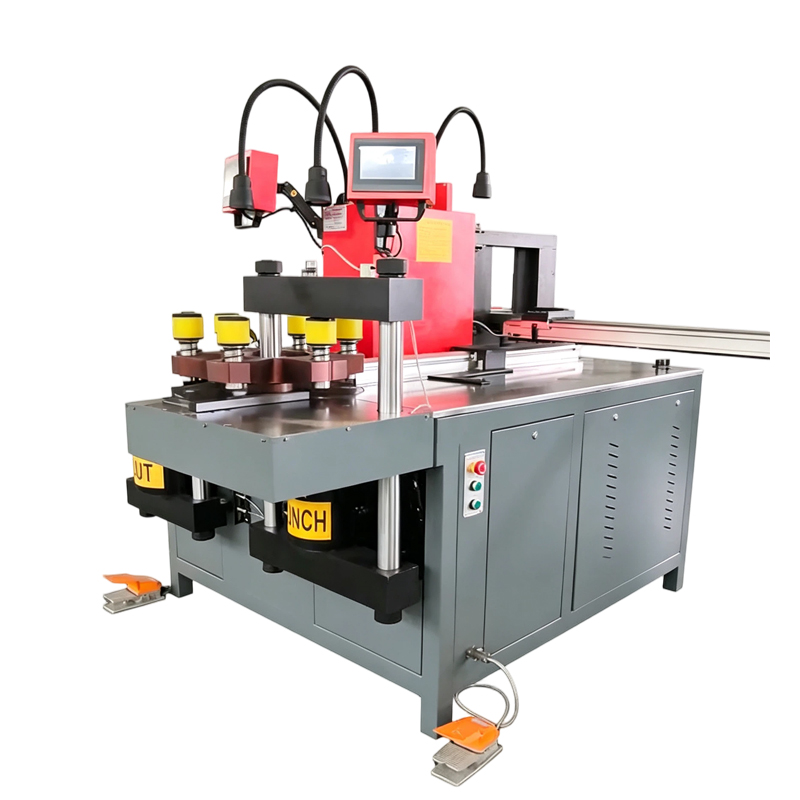

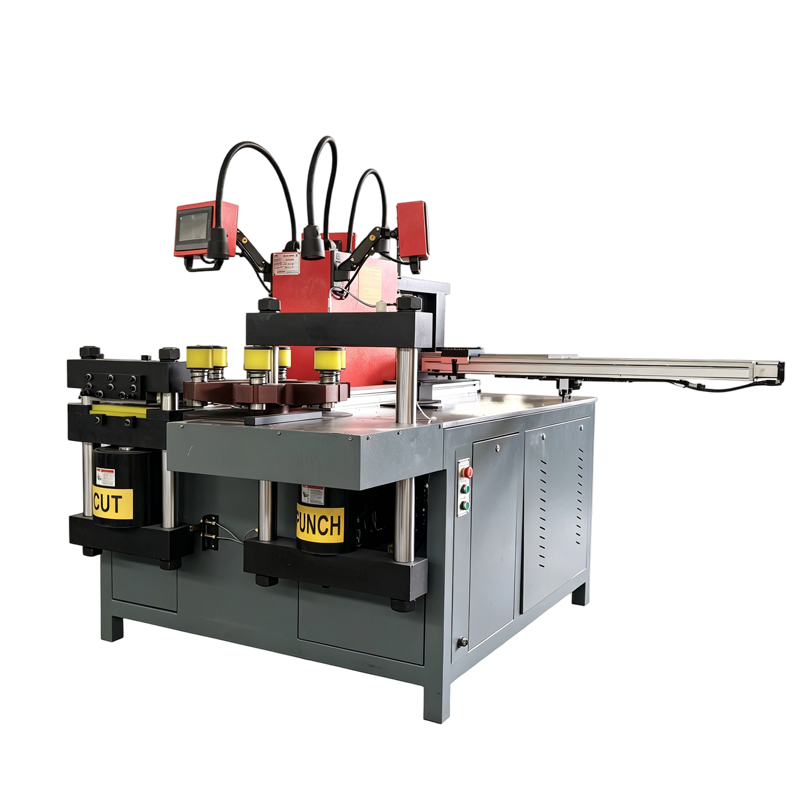

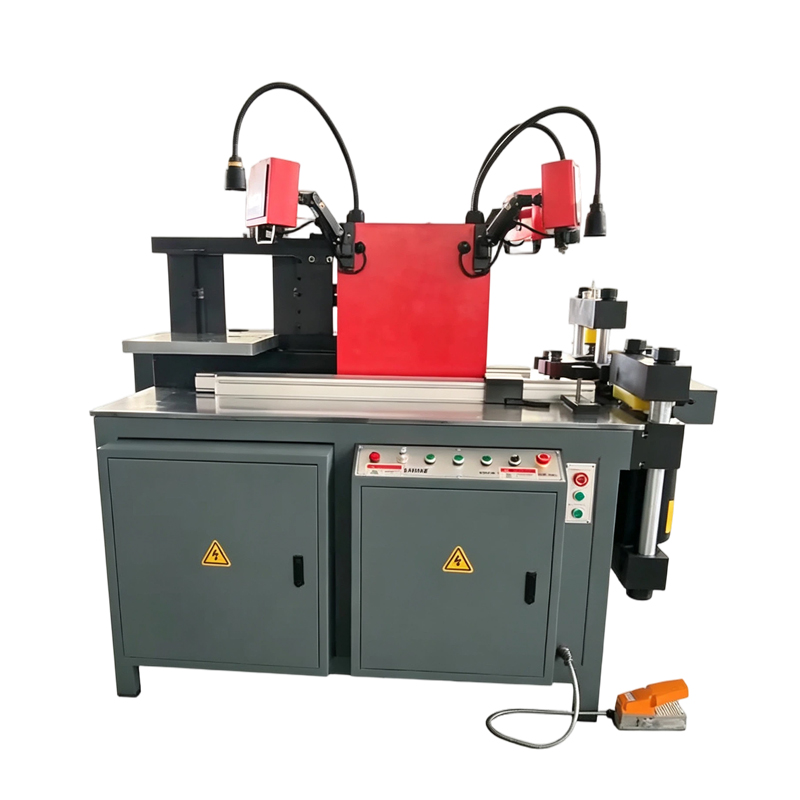

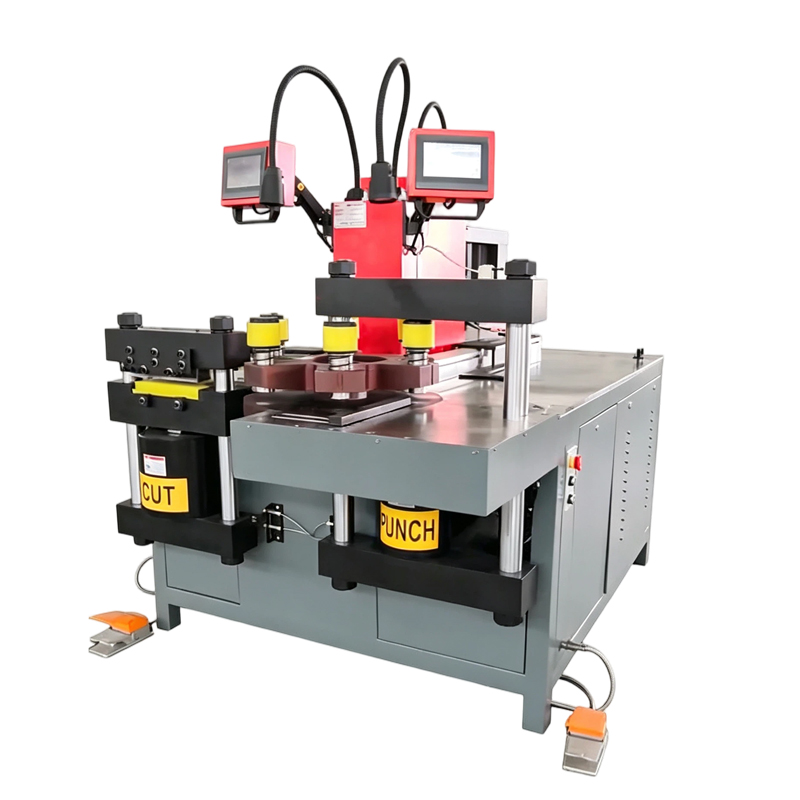

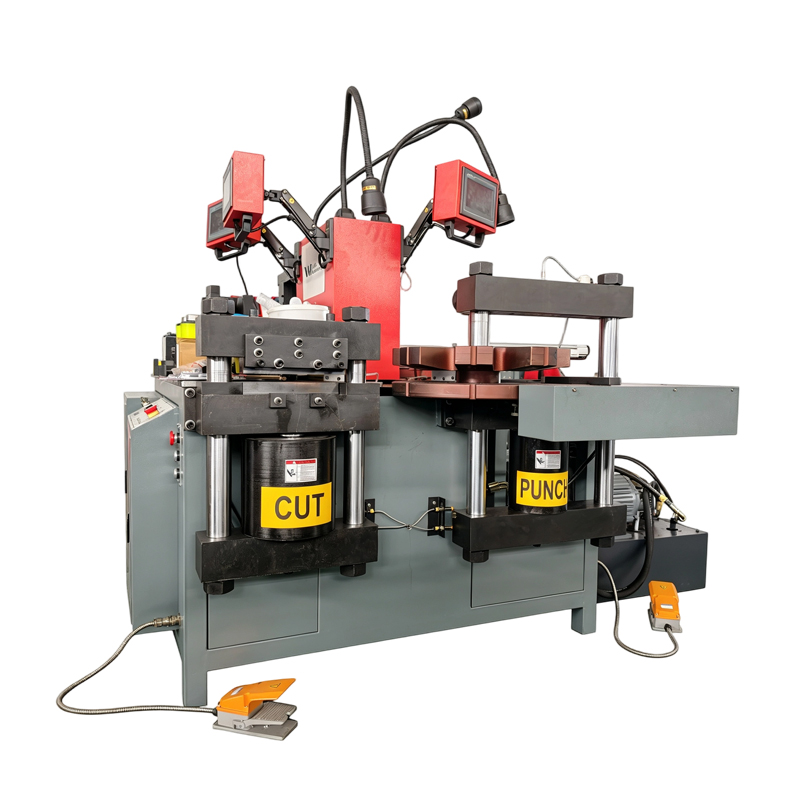

NCZMXK-803-3-S CNC Busbar Punching Machine
The CNC Busbar Punching Machine is designed for precise hole punching in copper and aluminum busbars up to 300 × 20 mm. Its CNC positioning system helps reduce manual measuring and marking, enabling accurate hole positioning and efficient processing for different busbar fabrication requirements.
Product Description

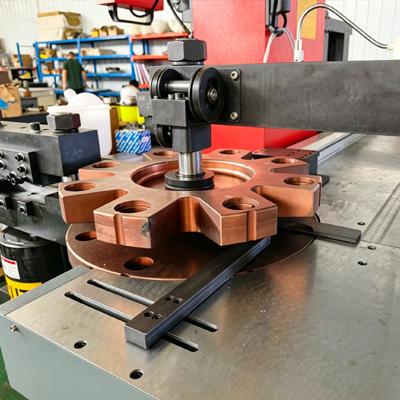

The CNC Busbar Punching Machine features a six-station turret design in its punching unit and is equipped with an automatic positioning system for automatic X- and Y-axis positioning of the busbar. By changing different punching dies, the machine can perform various punching operations, including round holes and oblong holes. Operators do not need to manually mark the busbar to determine the punching positions, which improves processing efficiency and punching positioning accuracy. In addition to punching, the machine also integrates bending and cutting units, allowing copper and aluminum busbars to be punched, cut, and bent on a single machine.
Fenghua CNC is a professional CNC busbar punching machine manufacturer in China. The NCZMXK-803-3-S CNC Busbar Punching Machine can process large copper and aluminum busbars with a maximum size of 300 × 20 mm. It is suitable for the manufacturing of electrical equipment such as high- and low-voltage switchgear, distribution boxes, and transformers.
Technical Specifications
The technical specifications of the CNC Busbar Punching Machine cover its maximum processing capacity, punching, cutting, and bending capabilities, servo positioning system, and machine configuration. They help you understand the machine's specific performance and the range of busbar sizes it can process.
Function | Parameter | NCZMXK-803-3-S |
Punching Unit | Maximum Punching Force | 800 kN |
Punching Diameter Range | φ4.3-φ34 mm | |
Maximum Punching Thickness | 16 mm | |
Maximum Punching Width | 300 mm | |
Servo Positioning Accuracy | ±0.2 mm | |
Servo Positioning Length | 0-1000 mm (Customizable) | |
Servo Positioning Width | 0-300 mm (Customizable) | |
Shearing Unit | Maximum Shearing Force | 800 kN |
Maximum Shearing Thickness | 16 mm | |
Maximum Shearing Width | 300 mm | |
Servo Positioning Accuracy | ±0.2 mm | |
Servo Positioning Length | 0-1000 mm (Customizable) | |
Bending Unit | Maximum Bending Force | 800 kN |
Maximum Bending Thickness | 16 mm | |
Maximum Bending Width | 300 mm | |
Bending Accuracy | ±0.2° | |
Servo Positioning Accuracy | ±0.2 mm | |
Servo Positioning Length | 0-800 mm (Customizable) | |
Horizontal Bending | Maximum Width | 120 mm |
Maximum Thickness | 12 mm | |
Other Parameters
| PLC System | Siemens |
Positioning Method | Automatic | |

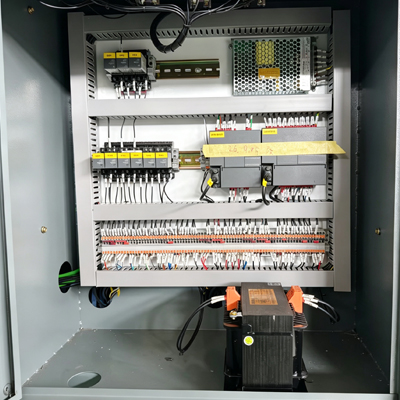

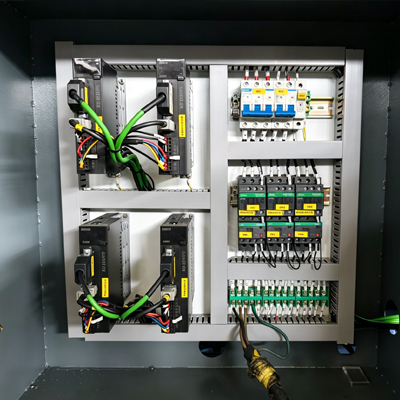

Control System | PLC + Touch Screen | |
Number of Touch Screens | 3 | |
Motor Power | 3 × 7.5 kW | |
Standard Power Supply | 380 V / 50 Hz | |
Overall Dimensions | 2060 × 1620 × 1680 mm | |
Machine Weight | 2300 kg |
Product Video
Molds and Accessories
Standard Dies Equipped with the Main Machine | |
Punching Dies | φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |

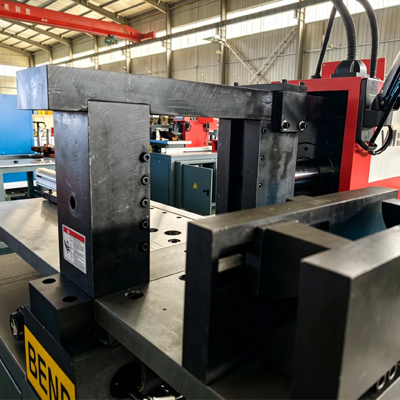

Bending Dies | Small Flat Bending (R3), Large Flat Bending (R5), Horizontal Bending (R80 or R50), U-shaped Bending |
Shearing Die | 1 set |
Embossing Die | 1 set |
Other Accessories | |
Foot Pedal Switch | 3 pcs |
Lubrication Device | 1 set |
Hex Key Set | 1 set |
Proximity Switch | 1 pc |
Relay | 1 pc |
Grease Gun | 1 pc |
Laser Light | 1 pc |
Work Light | 1 pc |
Punch Pin | 1 pc |
Mold Display

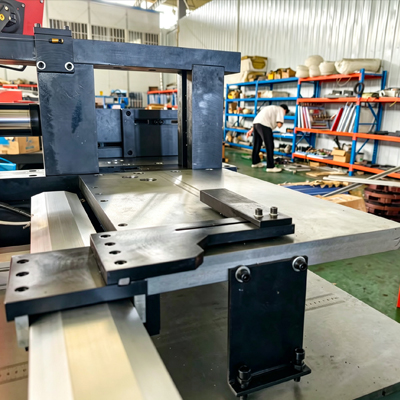

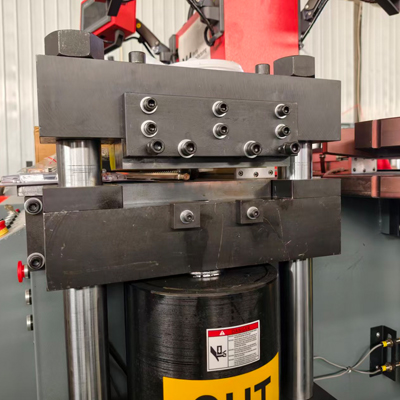

Product Details
