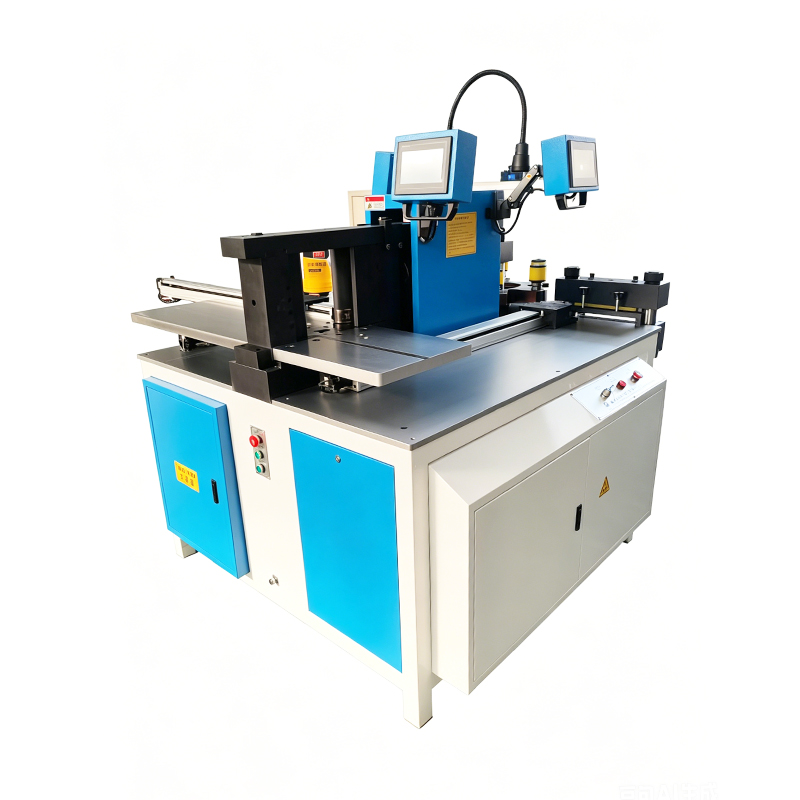

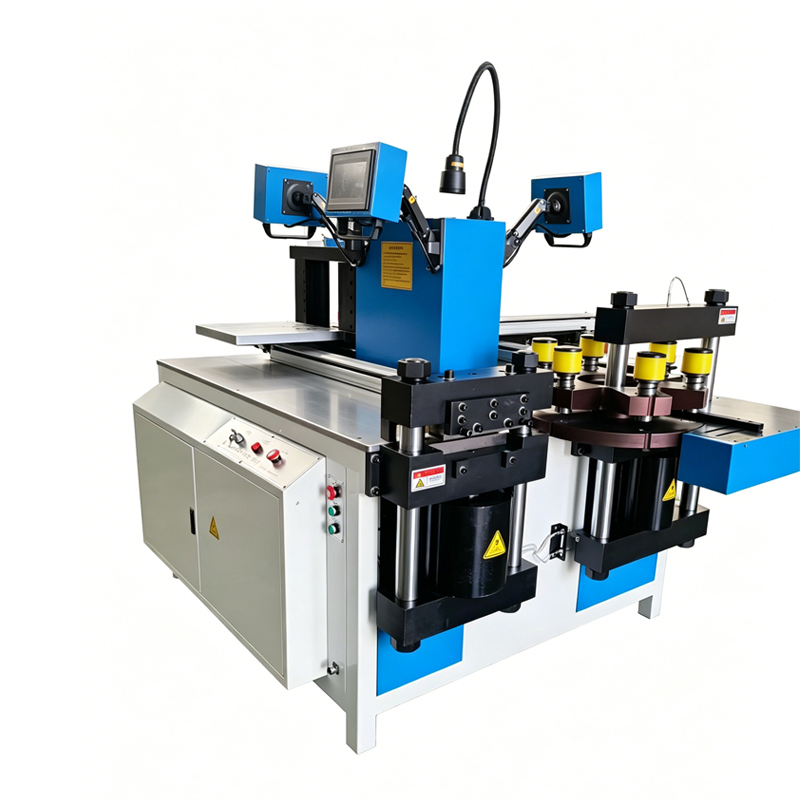

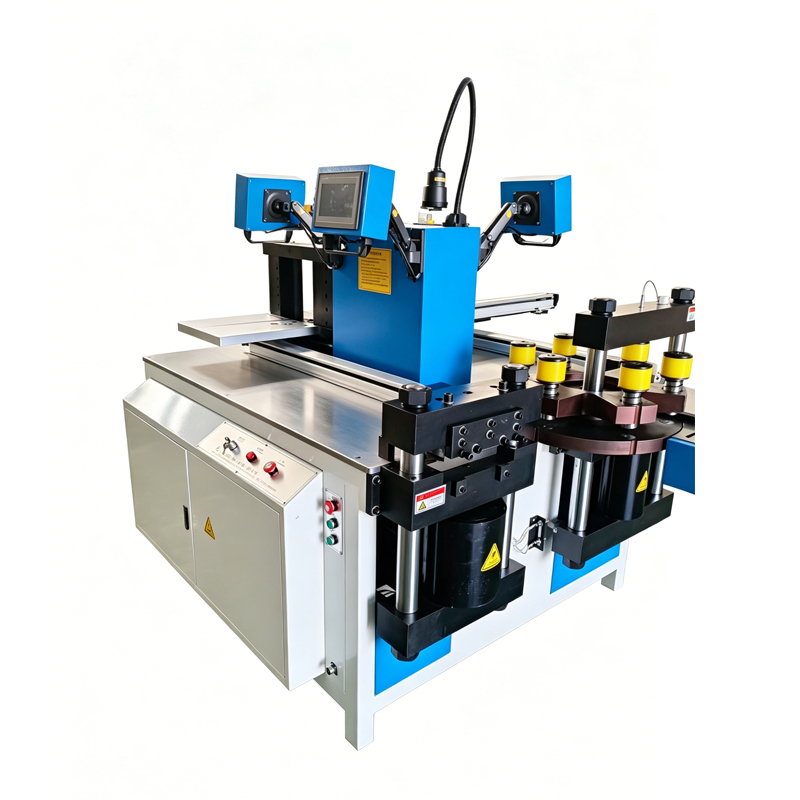

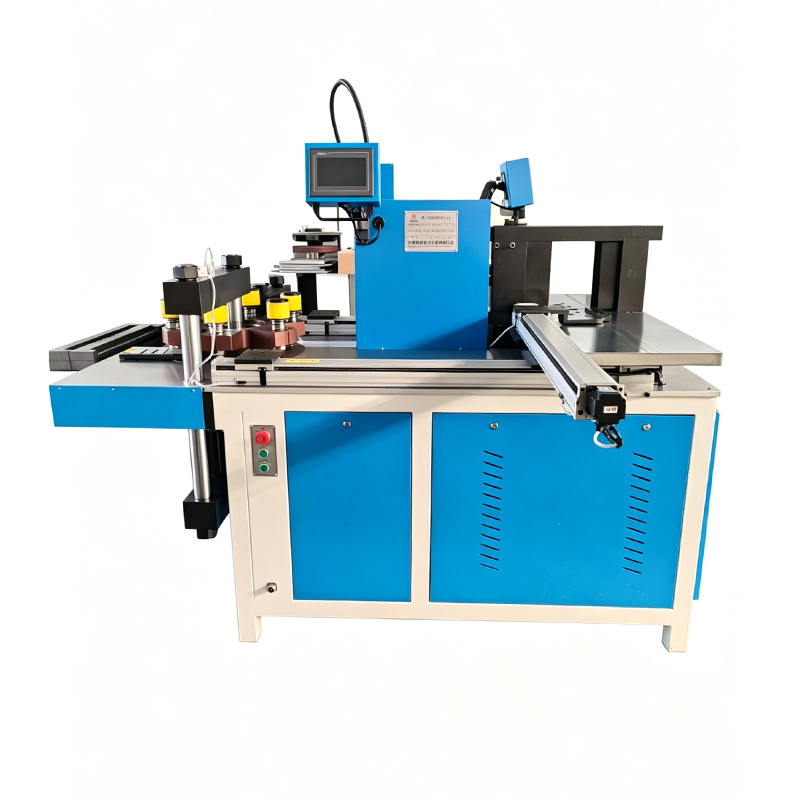

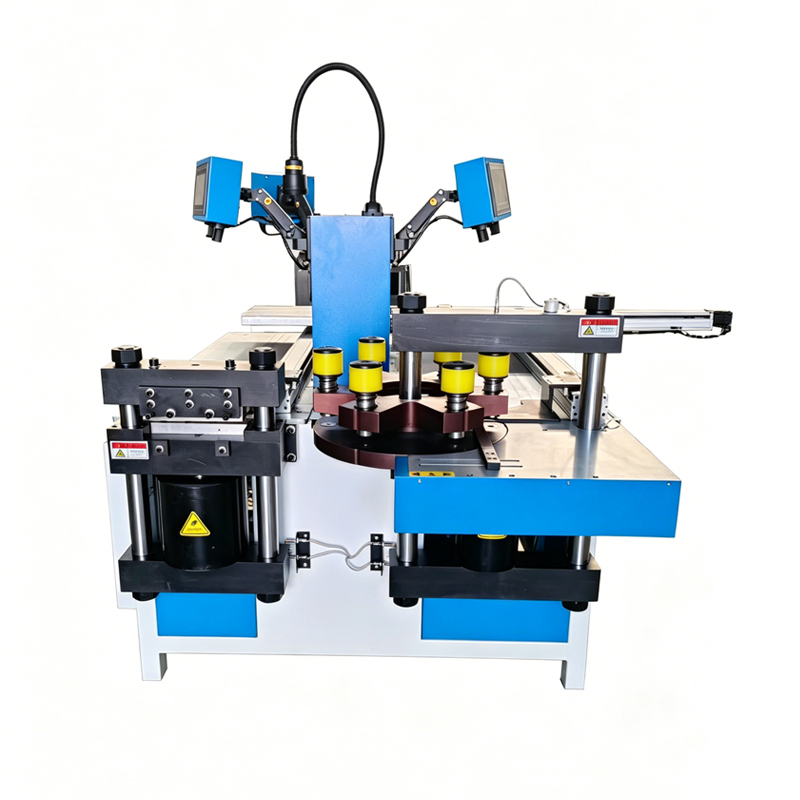

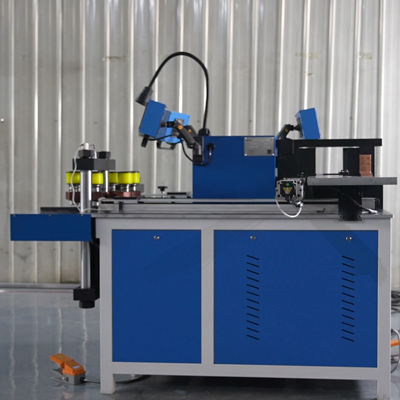

NCZMXK-503-3-S CNC Busbar Bending Machine
The CNC Busbar Bending Machine is designed for precise forming of copper and aluminum busbars up to 260 × 16 mm. CNC-controlled positioning and bending help reduce manual measuring and adjustment while improving bending accuracy, consistency and production efficiency.
Product Description

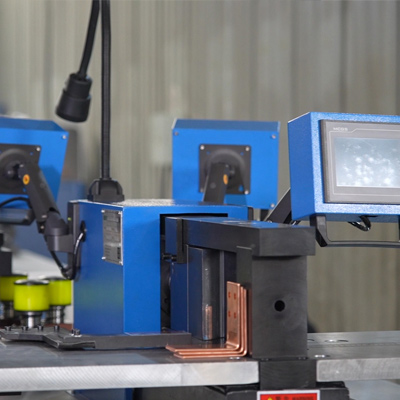

The CNC Busbar Bending Machine is a busbar processing machine controlled by a CNC PLC system and equipped with a servo positioning system. It can automatically determine the bending position according to the preset dimensions. By changing different bending dies, the machine can perform various busbar bending operations, including L-shaped, Z-shaped, and U-shaped bends, with a bending accuracy of up to ±0.2°. In addition to bending, the machine also integrates punching and cutting units, allowing copper and aluminum busbars to be punched, cut, and bent on a single machine.
Fenghua CNC is a professional CNC busbar bending machine manufacturer in China. The NCZMXK-503-3-S CNC Busbar Bending Machine can process copper and aluminum busbars with a maximum size of 260 × 16 mm. It is suitable for the manufacturing of electrical equipment such as high- and low-voltage switchgear, distribution boxes, and transformers.
Technical Specifications
The technical specifications of the CNC Busbar Bending Machine cover its maximum processing capacity, bending capabilities, positioning accuracy, and machine configuration. They help you understand the machine's specific performance and the range of busbar sizes it can process.
Function | Parameter | NCZMXK-503-3-S |
Punching Unit | Maximum Punching Force | 500 kN |
Punching Diameter Range | φ4.3-φ34 mm | |
Maximum Punching Thickness | 16 mm | |
Maximum Punching Width | 260 mm | |
Servo Positioning Accuracy | ±0.2 mm | |
Servo Positioning Length | 0-1000 mm (Customizable) | |
Servo Positioning Width | 0-300 mm (Customizable) | |
Shearing Unit | Maximum Shearing Force | 500 kN |
Maximum Shearing Thickness | 16 mm | |
Maximum Shearing Width | 260 mm | |
Servo Positioning Accuracy | ±0.2 mm | |
Servo Positioning Length | 0-1000 mm (Customizable) | |
Bending Unit | Maximum Bending Force | 500 kN |
Maximum Bending Thickness | 16 mm | |
Maximum Bending Width | 260 mm | |
Bending Accuracy | ±0.2° | |
Servo Positioning Accuracy | ±0.2 mm | |
Servo Positioning Length | 0-800 mm (Customizable) | |
Horizontal Bending | Maximum Width | 120 mm |
Maximum Thickness | 12 mm | |
Other Parameters
| PLC System | Siemens |
Positioning Method | Automatic | |

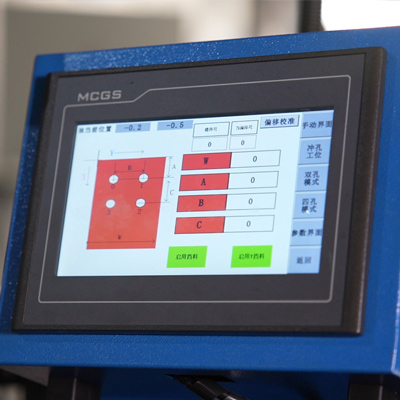

Control System | PLC + Touch Screen | |
Number of Touch Screens | 3 | |
Motor Power | 3 × 5.5 kW | |
Standard Power Supply | 380 V / 50 Hz | |
Overall Dimensions | 2000 × 1550 × 1300 mm | |
Machine Weight | 1800 kg |
Product Video

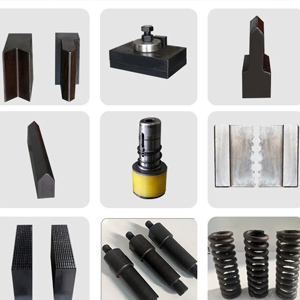

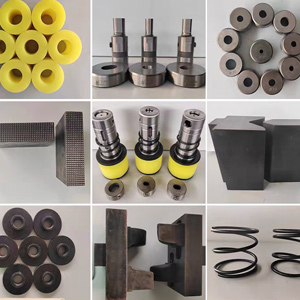

Molds and Accessories
Standard Dies Equipped with the Main Machine | |
Punching Dies | φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |
Bending Dies | Small Flat Bending (R3), Large Flat Bending (R5), Horizontal Bending (R80 or R50), U-shaped Bending |
Shearing Die | 1 set |
Embossing Die | 1 set |
Other Accessories | |

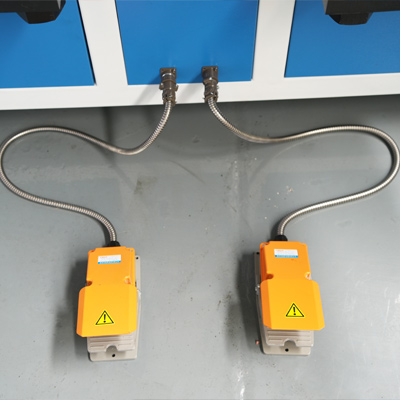

Foot Pedal Switch | 3 pcs |
Lubrication Device | 1 set |
Hex Key Set | 1 set |
Proximity Switch | 1 pc |
Relay | 1 pc |
Grease Gun | 1 pc |
Laser Light | 1 pc |

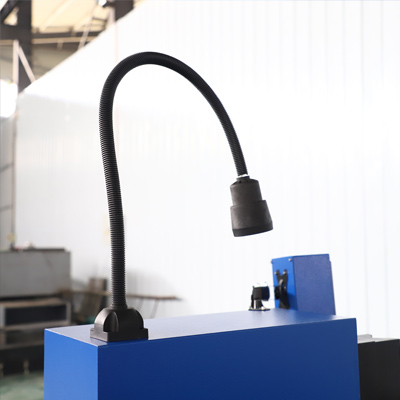

Work Light | 1 pc |
Punch Pin | 1 pc |

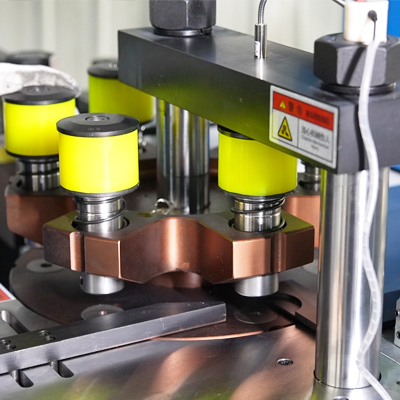

Mold Display

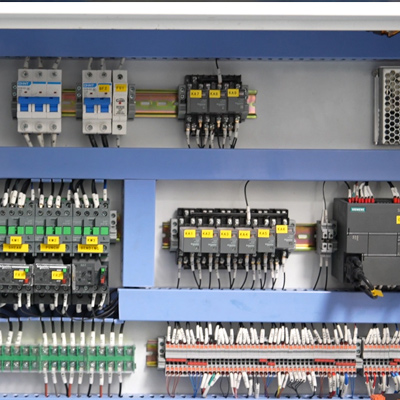

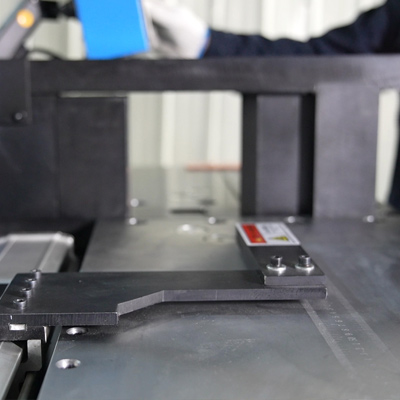

Product Details
