303 Copper Busbar Machine
The Copper Busbar Machine combines punching, cutting and bending in one integrated system for processing copper and alum…
Product Gallery
- Category : 3-in-1 Busbar Processing Machine

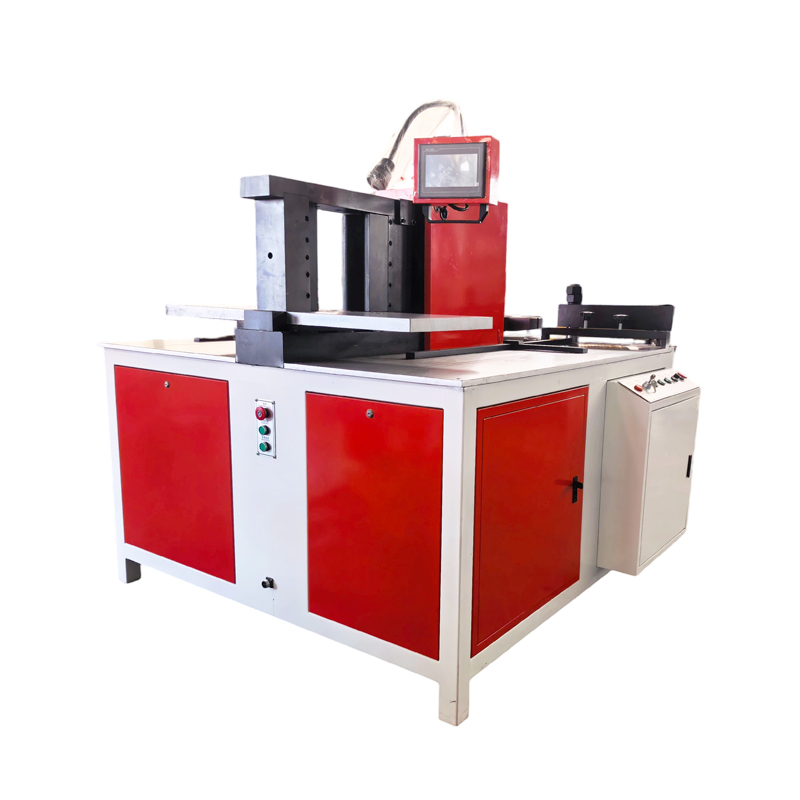

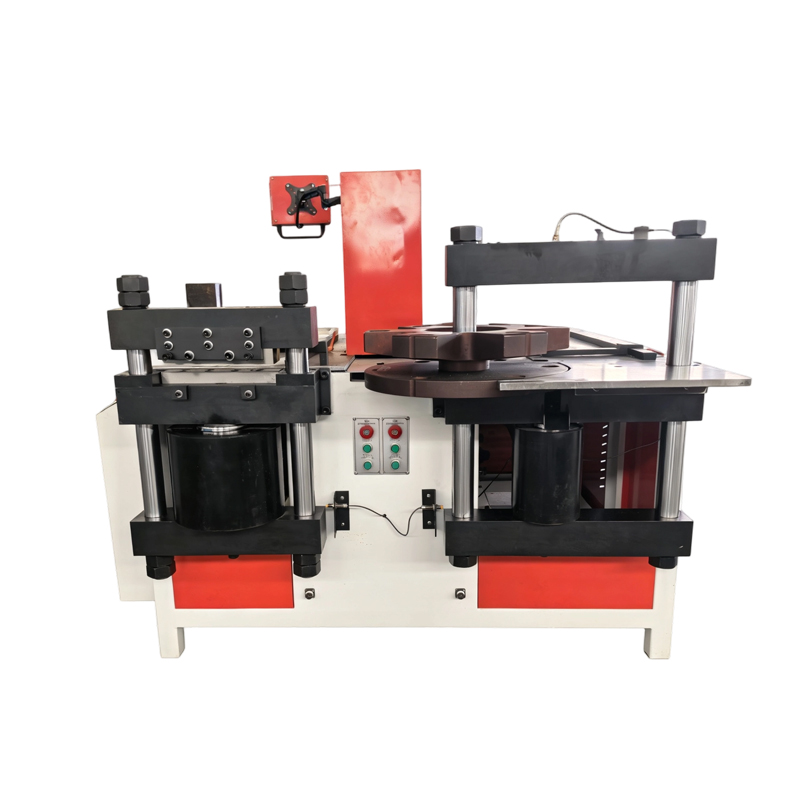

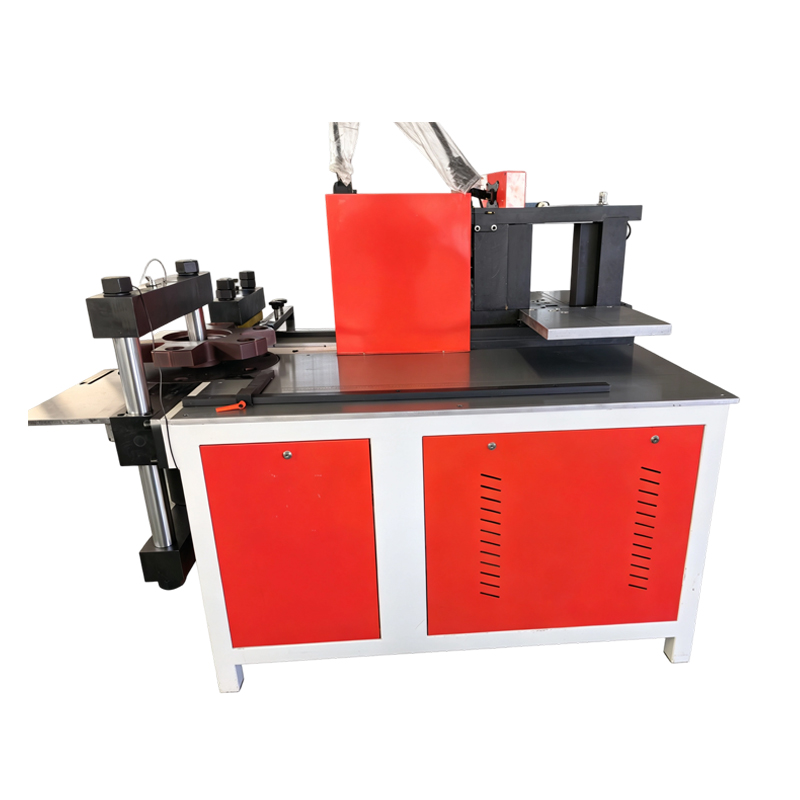

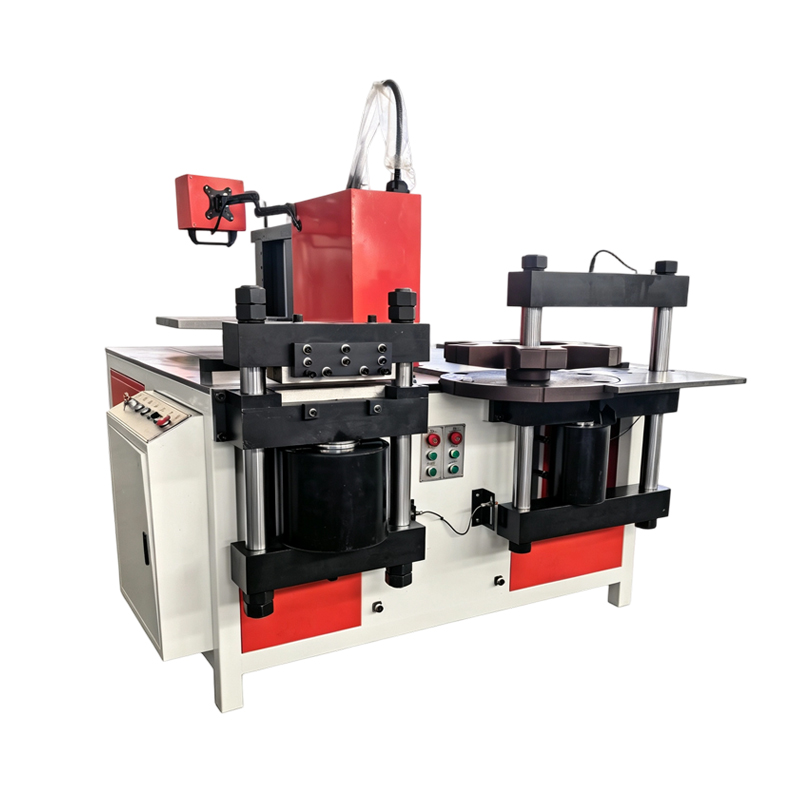

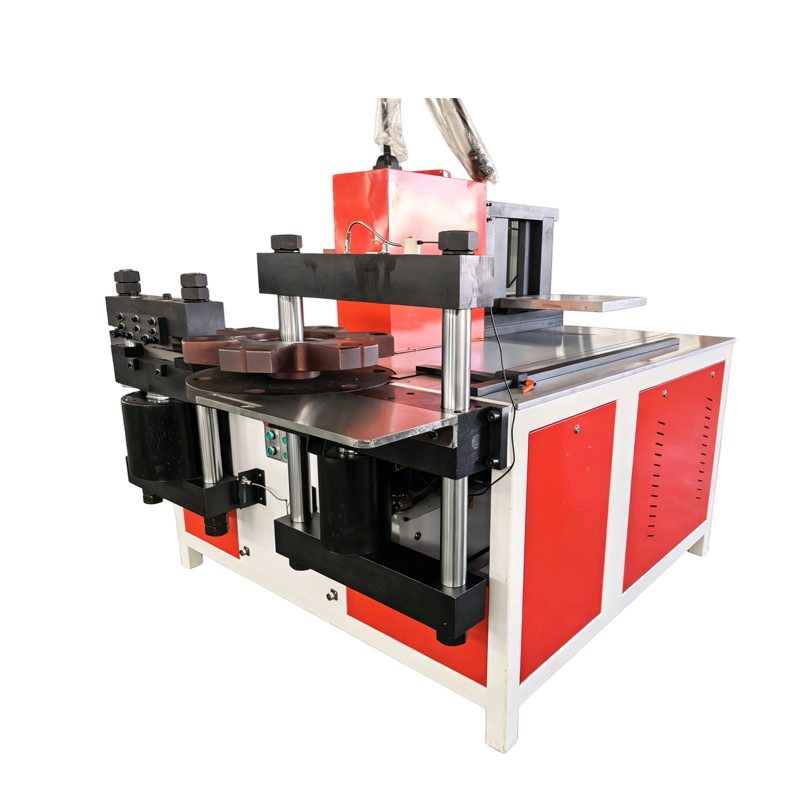

MX-803BSSK Hydraulic Busbar Machine
The Hydraulic Busbar Machine uses a hydraulic drive system to provide the force required for punching, cutting and bending copper and aluminum busbars. With independent processing units and stable hydraulic performance, it is suitable for a wide range of busbar fabrication requirements in electrical equipment manufacturing.
Product Description
Hydraulic Busbar Machine is mainly designed for processing large copper and aluminum busbars. Equipped with an 800 kN hydraulic pressure system, it can process large and heavy-duty busbars up to 300 × 20 mm.The machine integrates punching, cutting, and bending functions into one unit. It can perform round-hole and oblong-hole punching, busbar cutting, and various bending and forming operations. The bending unit is controlled by a PLC system, enabling precise control of the bending angle and improving bending accuracy. It supports various bending operations, including L-shaped, Z-shaped, and U-shaped bends.The machine is suitable for processing large-size busbars and for electrical equipment manufacturing, including switchgear, distribution cabinets, and transformers.
Technical Specifications
The technical specifications of the Hydraulic Busbar Machine cover its maximum processing capacity, punching, cutting, and bending capabilities, as well as its machine configuration. They help you understand the machine's specific performance and the range of busbar sizes it can process.
| Function | Parameter | MX-803BSSK |
| Punching Unit | Maximum Punching Force | 800 kN |
| Punching Diameter Range | φ4.3–φ34 mm | |
| Maximum Punching Thickness | 20 mm | |
| Maximum Punching Width | 300 mm | |
| Shearing Unit | Maximum Shearing Force | 800 kN |
| Maximum Shearing Thickness | 20 mm | |
| Maximum Shearing Width | 300 mm | |
| Bending Unit | Maximum Bending Force | 800 kN |
| Maximum Bending Thickness | 20 mm | |
| Maximum Bending Width | 300 mm | |
| Bending Accuracy | ±0.2° | |
| Horizontal Bending | Maximum Width | 120 mm |
| Maximum Thickness | 12 mm | |
| Other Parameters | PLC System | Siemens |
| Positioning Method | Manual | |
| Control System | PLC + Touch Screen | |
| Number of Touch Screens | 1 | |
| Motor Power | 3 × 7.5 kW | |
| Standard Voltage | 380 V / 50 Hz | |
| Overall Dimensions | 2060 × 1620 × 1680 mm | |
| Machine Weight | 2.3 T |
Product Video

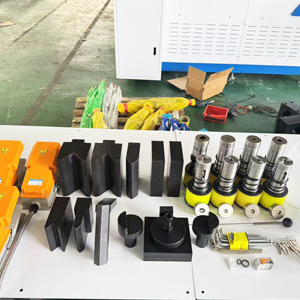

Molds and Accessories
Standard Dies Equipped with the Main Machine | |

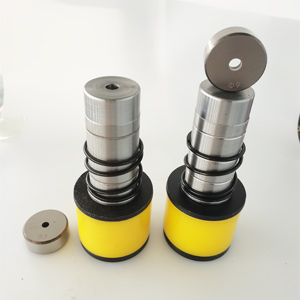

Punching Dies | φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |

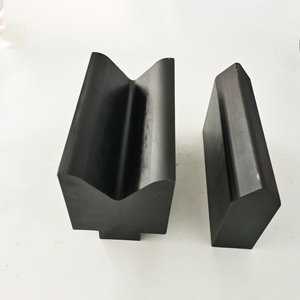

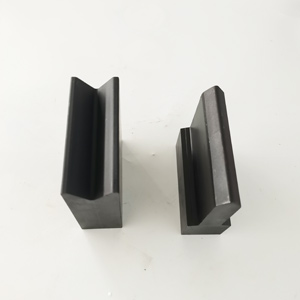

Bending Dies | Small Flat Bending (R3), Large Flat Bending (R5), Horizontal Bending (R80 or R50), U-shaped Bending |
Shearing Die | 1 set |
Embossing Die | 1 set |
Other Accessories | |
Foot Pedal Switch | 3 pcs |
Lubrication Device | 1 set |
Hex Key Set | 1 set |
Proximity Switch | 1 pc |
Relay | 1 pc |
Grease Gun | 1 pc |
Laser Light | 1 pc |
Work Light | 1 pc |
Punch Pin | 1 pc |
Mold Display

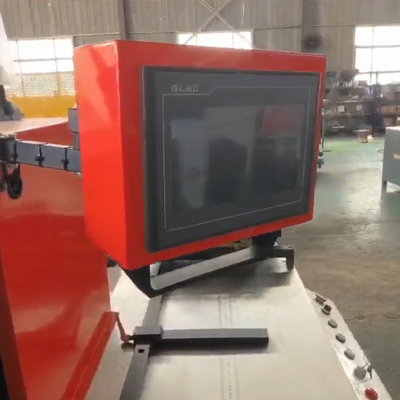

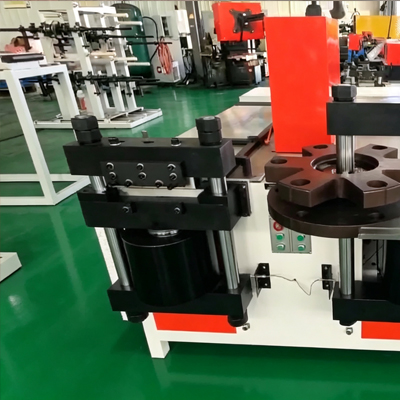

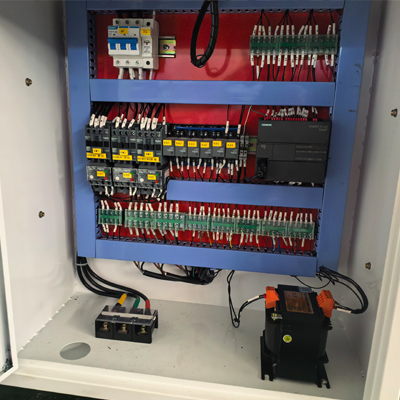

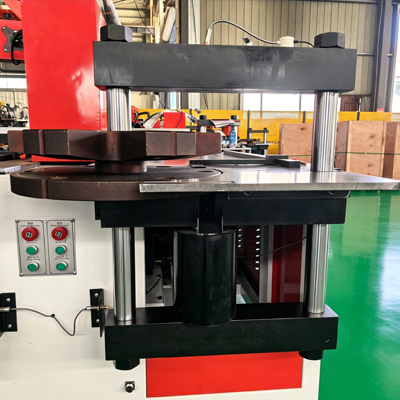

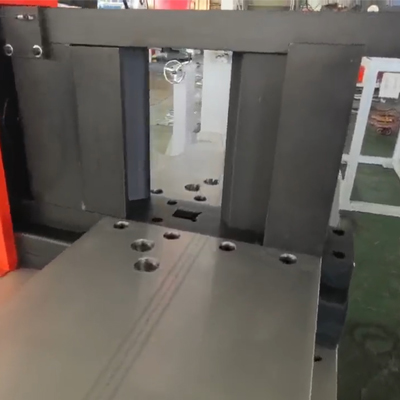

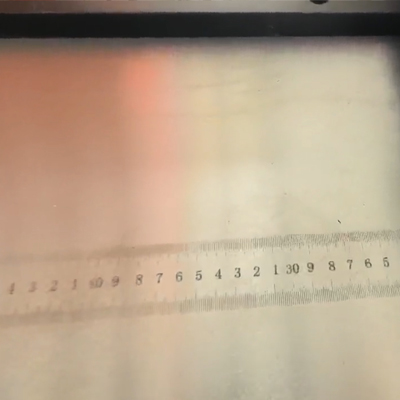

Product Details
Related Product Recommendations
NCZMXK-303-3-S CNC Busbar Processing Machine
The CNC Busbar Processing Machine integrates punching, cutting and bending for copper and aluminum busbars up to 160 × 1…
CNC Busbar Punching and Shearing Machine
The CNC Busbar Punching and Shearing Machine integrates punching and shearing for copper and aluminum busbars, with CNC-…
CNC Busbar Bending Machine
CNC busbar bending machine designed for precise forming of copper and aluminum busbars, with CNC-controlled bending and …
