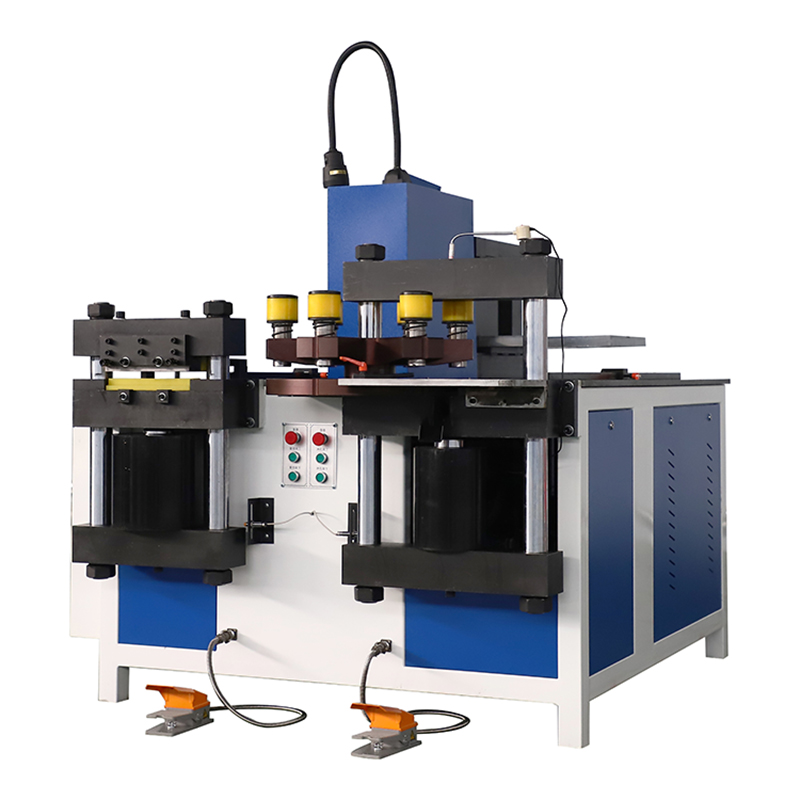

MX-803BSSK Hydraulic Busbar Machine
The Hydraulic Busbar Machine uses a hydraulic drive system to provide the force required for punching, cutting and bendi…
Product Gallery
- Category : 3-in-1 Busbar Processing Machine

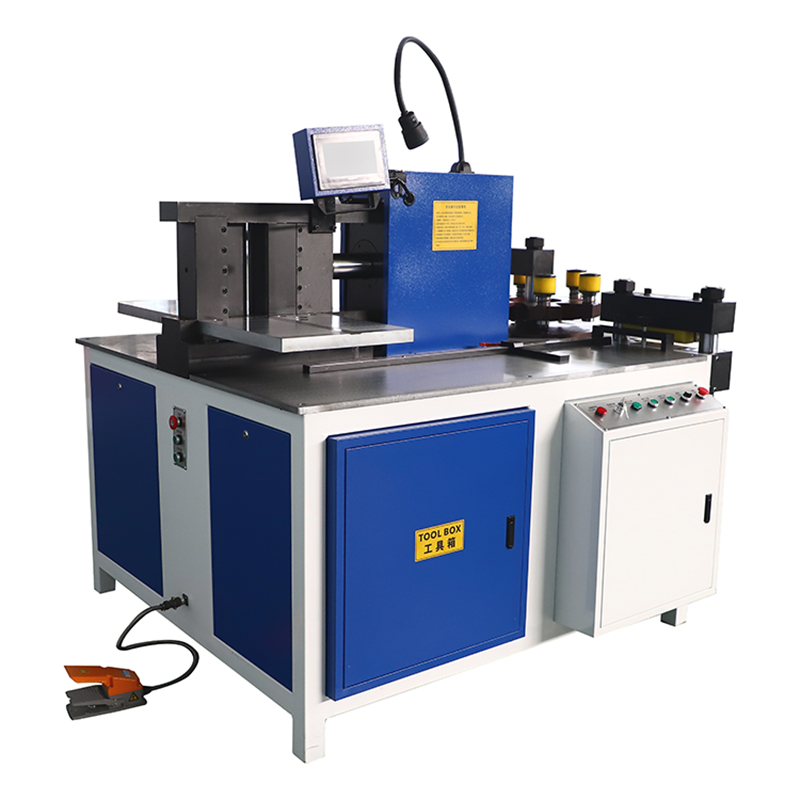

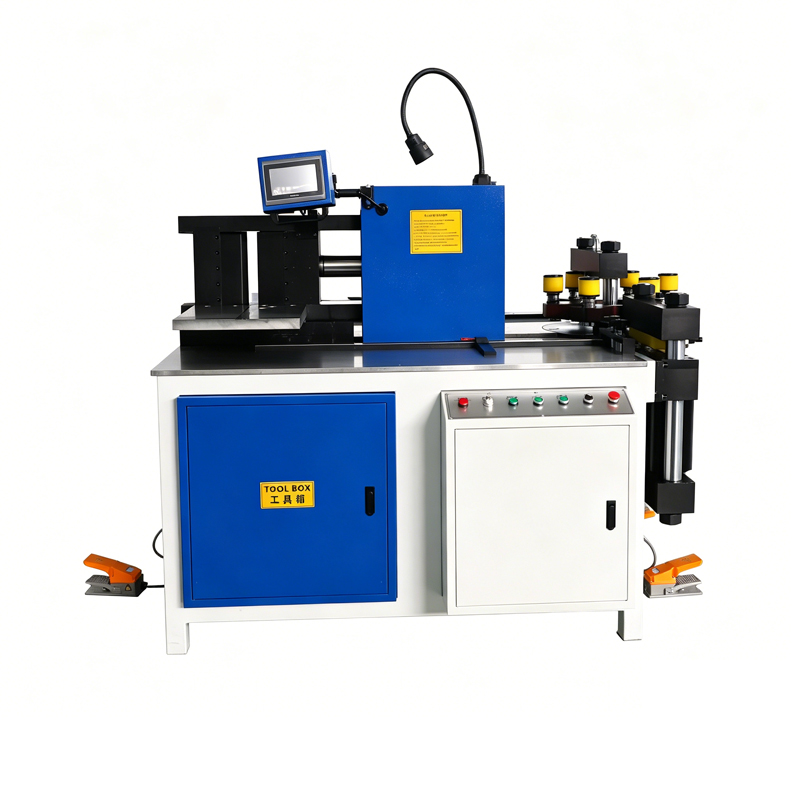

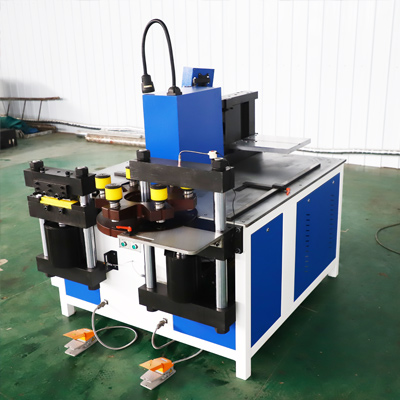

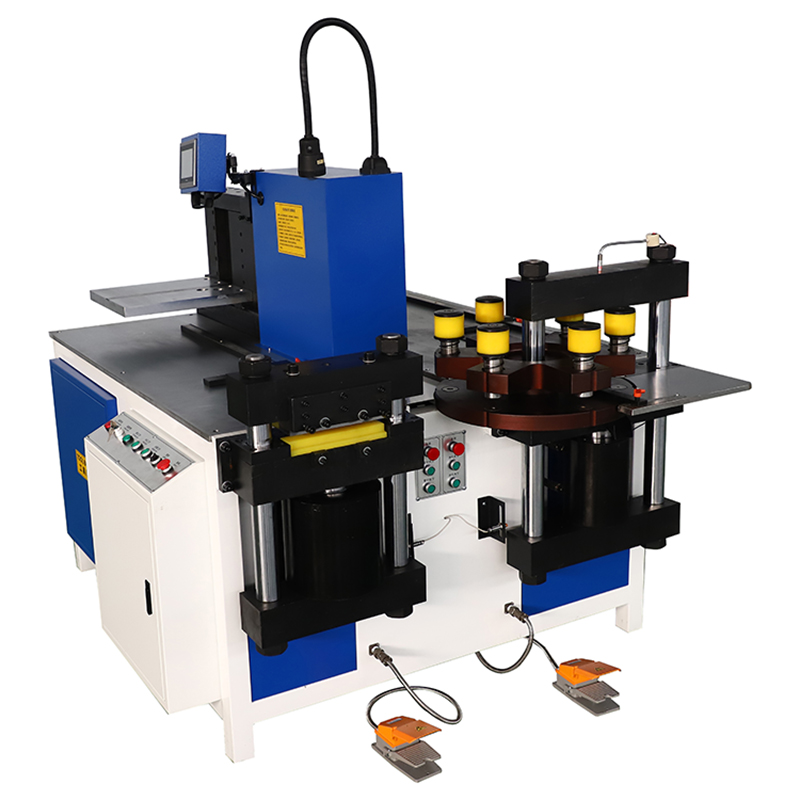

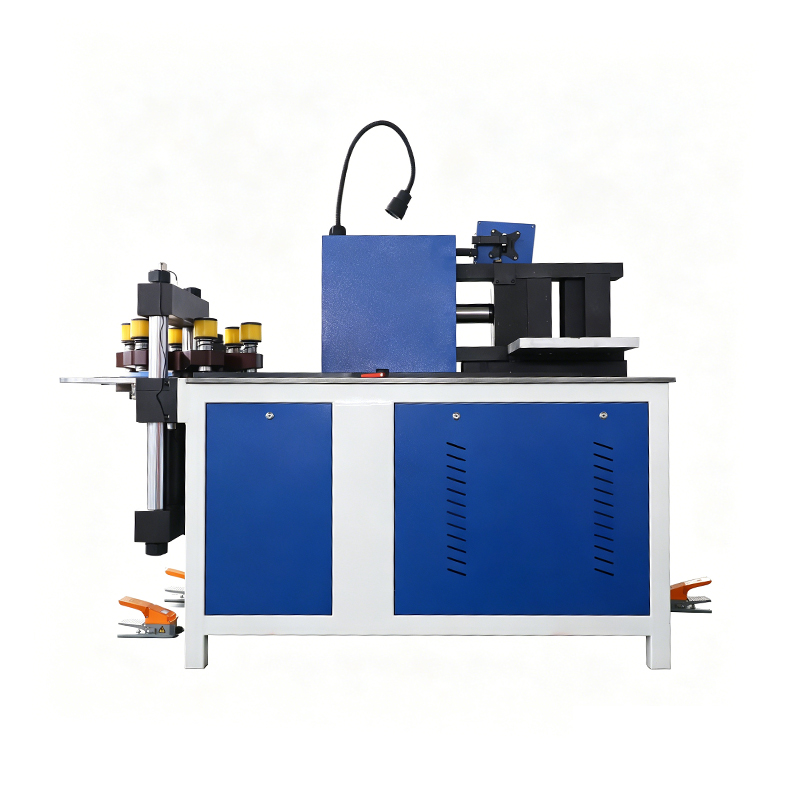

MX-503BSSK Busbar cutting machine
The Busbar Cutting Machine is designed for precise and efficient cutting of copper and aluminum busbars to the required lengths. Its hydraulic cutting system provides stable cutting performance and clean results, making it suitable for busbar fabrication in electrical equipment manufacturing.
Product Description
Busbar Cutting Machine is a 3-in-1 busbar processing machine mainly designed for processing copper and aluminum busbars. It is equipped with three 5.5 kW motors and three independent 500 kN hydraulic systems, and can process busbars up to 260 × 16 mm.In addition to busbar cutting, the machine can also perform punching and bending operations, including round-hole and oblong-hole punching as well as various bending and forming operations. The three processing units operate independently and can be operated separately according to different processing requirements, meeting a wide range of busbar processing needs in electrical equipment manufacturing.
Technical Specifications
The technical specifications of the Busbar Cutting Machine cover its maximum processing capacity, punching, cutting, and bending capabilities, as well as its machine configuration. They help you understand the machine's specific performance and the range of busbar sizes it can process.

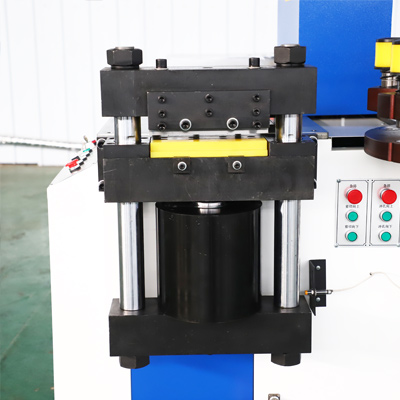

| Function | Parameter | MX-503BSSK |
| Punching Unit | Maximum Punching Force | 500 kN |
| Punching Diameter Range | φ4.3–φ34 mm | |
| Maximum Punching Thickness | 16 mm | |
| Maximum Punching Width | 260 mm | |
| Shearing Unit | Maximum Shearing Force | 500 kN |
| Maximum Shearing Thickness | 16 mm | |
| Maximum Shearing Width | 260 mm | |
| Bending Unit | Maximum Bending Force | 500 kN |
| Maximum Bending Thickness | 16 mm | |
| Maximum Bending Width | 260 mm | |
| Bending Accuracy | ±0.2° | |
| Horizontal Bending | Maximum Width | 120 mm |
| Maximum Thickness | 12 mm | |
| Other Parameters | PLC System | Siemens |
| Positioning Method | Manual | |

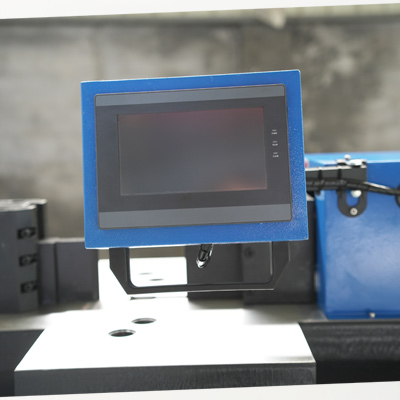

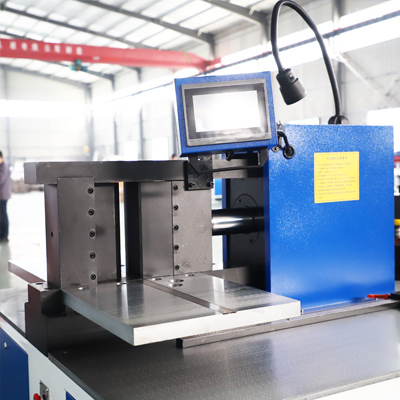

| Control System | PLC + Touch Screen | |
| Number of Touch Screens | 1 | |
| Motor Power | 3 × 5.5 kW | |
| Standard Voltage | 380 V / 50 Hz | |
| Overall Dimensions | 1920 × 1560 × 1450 mm | |
| Machine Weight | 1.9 T |
Product Video
Molds and Accessories
Standard Dies Equipped with the Main Machine | |

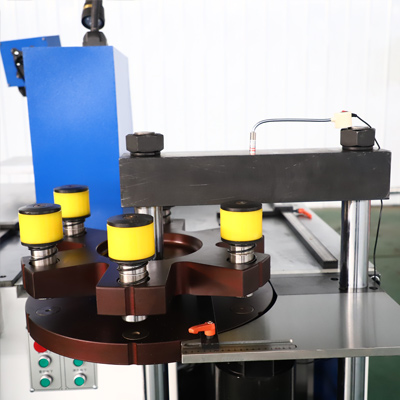

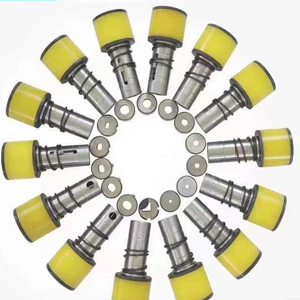

Punching Dies | φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |

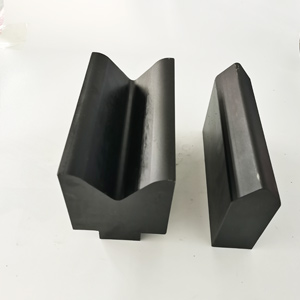

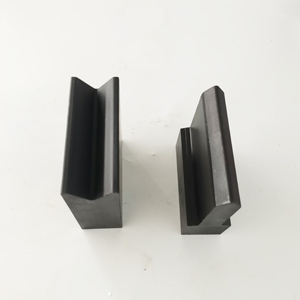

Bending Dies | Small Flat Bending (R3), Large Flat Bending (R5), Horizontal Bending (R80 or R50), U-shaped Bending |
Shearing Die | 1 set |
Embossing Die | 1 set |
Other Accessories | |

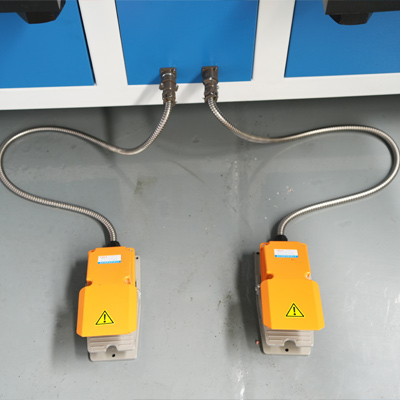

Foot Pedal Switch | 3 pcs |
Lubrication Device | 1 set |
Hex Key Set | 1 set |
Proximity Switch | 1 pc |
Relay | 1 pc |
Grease Gun | 1 pc |
Laser Light | 1 pc |

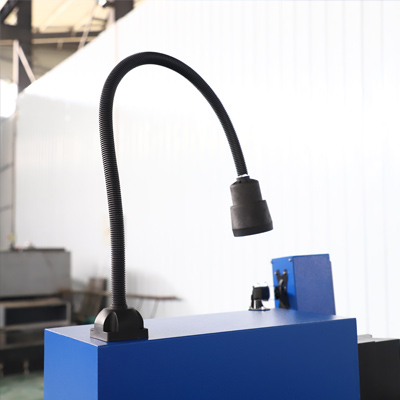

Work Light | 1 pc |
Punch Pin | 1 pc |
Mold Display
